51 11 158 Replacing baseplate for licence plate

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove license plate holder (2).

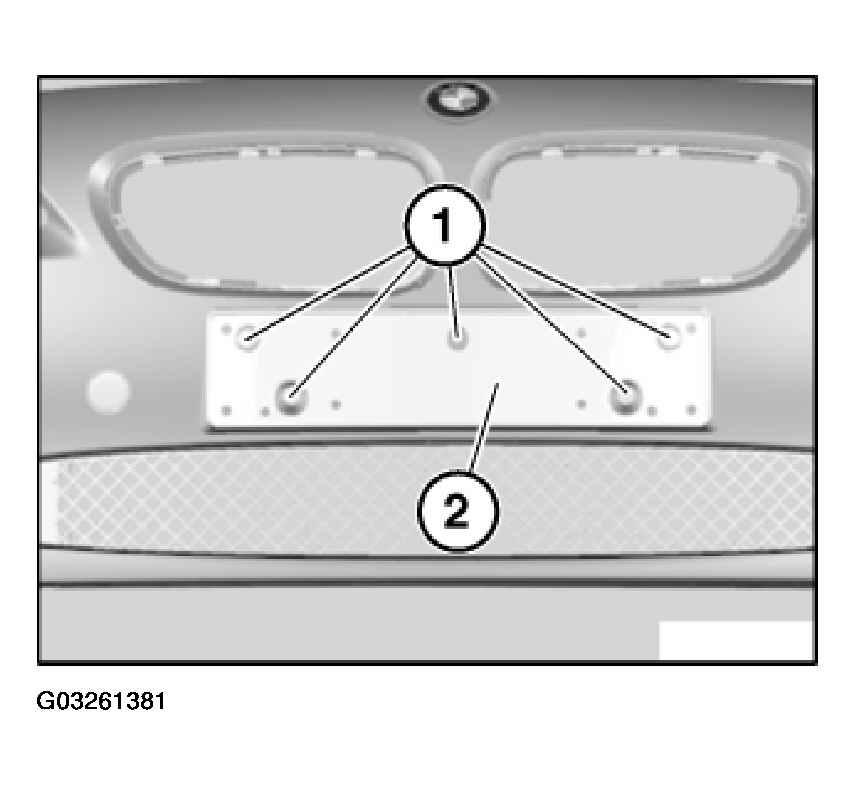

Fig 1: Removing License Plate Holder
G03261381Courtesy of BMW OF NORTH AMERICA, INC.
