66 20 520 Removing and installing/replacing an ultrasonic transducer at front (Park Distance Control)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim. See 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Unfasten plug connection (1) and disconnect.

Unlock catches (2) in direction of arrow and pull ultrasonic transducer (3) out of bracket (4).

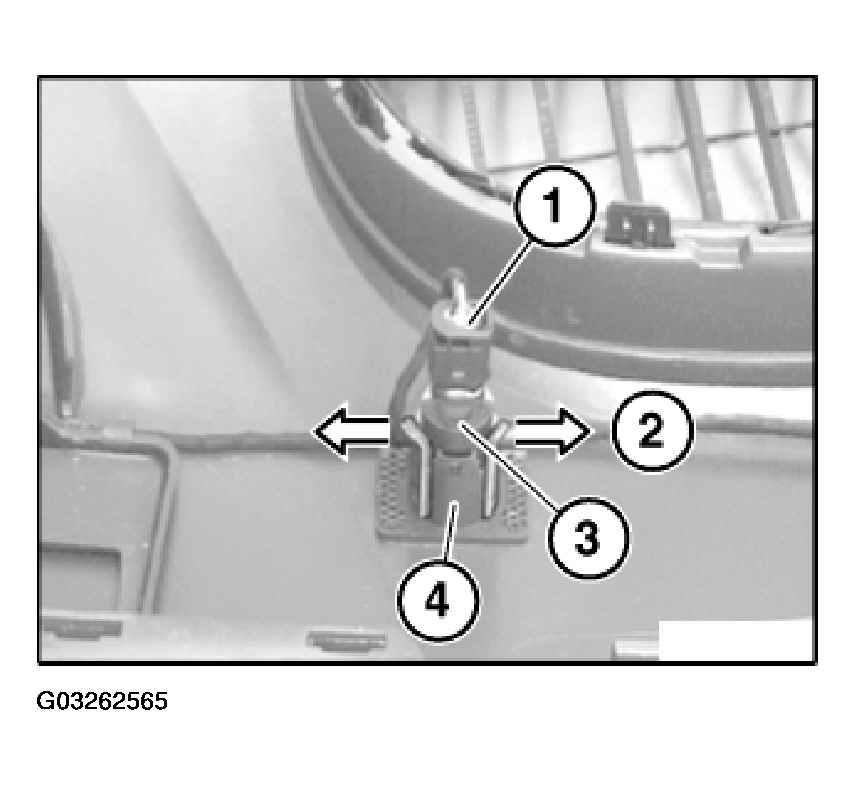

Fig 1: Pulling Ultrasonic Transducer Out Of Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

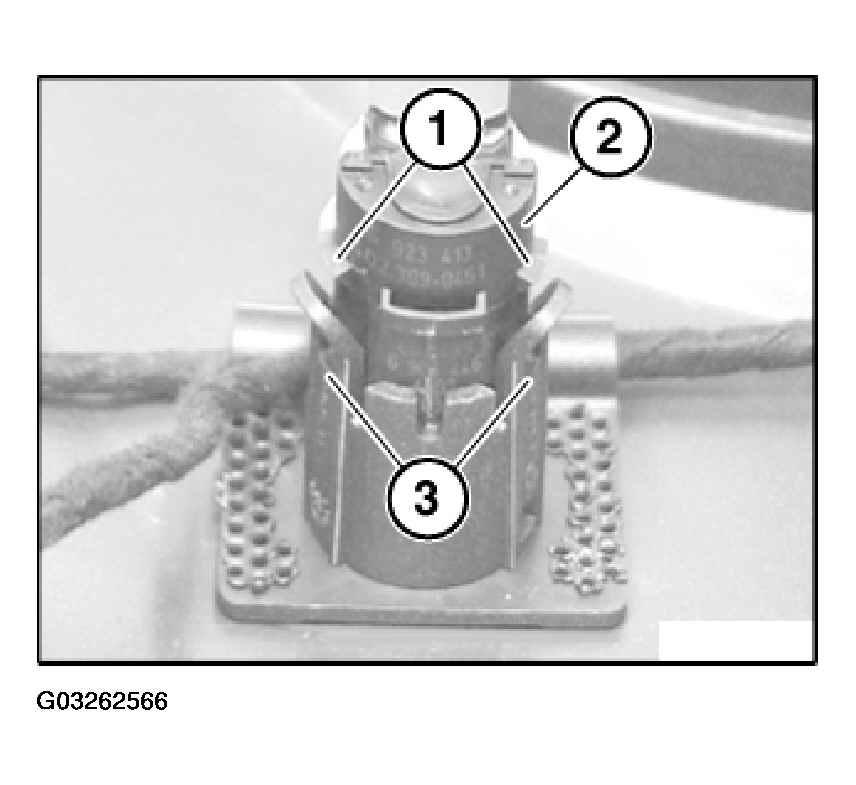

Fig 2: Identifying Retaining Hooks Of Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.
