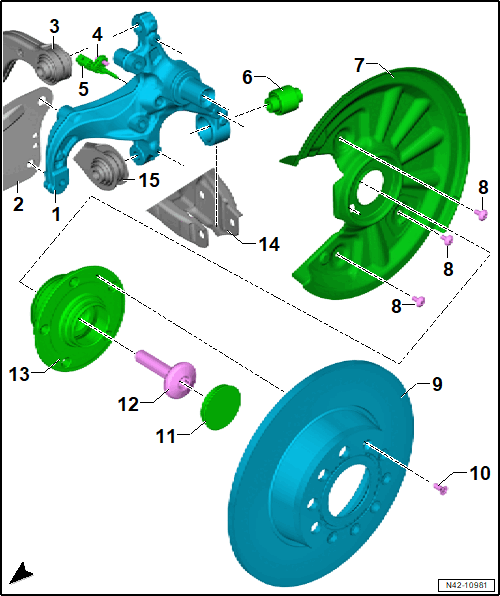

Overview - Wheel Bearing, Fwd With Multi-Link Suspension
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel Bearing Housing
- Removing and Installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING, FWD WITH MULTI-LINK SUSPENSION .
- Trailing Arm
- Overview. Refer to OVERVIEW - TRAILING ARM .
- Upper Transverse Link
- Overview. Refer to OVERVIEW - TRANSVERSE LINK .
- Bolt
- Tightening specification. Refer to OVERVIEW - REAR AXLE SPEED SENSOR .
- Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44-
- Left Rear ABS Wheel Speed Sensor -G46-
- Overview. Refer to OVERVIEW - REAR AXLE SPEED SENSOR .
- Bonded Rubber Bushing
- Replacing. Refer to WHEEL BEARING HOUSING BONDED RUBBER BUSHING, REPLACING .
- Brake Shield
- Removing and installing. Refer to BRAKE SHIELD, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - REAR BRAKES .
- Brake Rotor
- Removing and installing. Refer to BRAKE ROTOR, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - REAR BRAKES .
- Dust Cap
- Replace after removing
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING, FWD WITH MULTI-LINK SUSPENSION .
- Bolt
- 200 Nm + 90° additional turn
- Replace after removing
- Clean the threads in the wheel bearing housing with a thread tap before installing.
- Bolt, Loosening and Tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
- Wheel Bearing Unit
- With sensor ring for ABS speed sensor
- Check sensor ring. Refer to Sensors ; Sensor Ring for ABS Speed Sensor Checking
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING, FWD WITH MULTI-LINK SUSPENSION .
- Cannot be disassembled
- Handling the wheel bearing. Refer to the graphic under OVERVIEW - WHEEL BEARING, FWD WITH TORSION BEAM AXLE .
- Lower Transverse Link
- Overview. Refer to OVERVIEW - TRANSVERSE LINK .
- Tie Rod
- Overview. Refer to OVERVIEW - TIE ROD .
