Overview - Trailing Arm

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

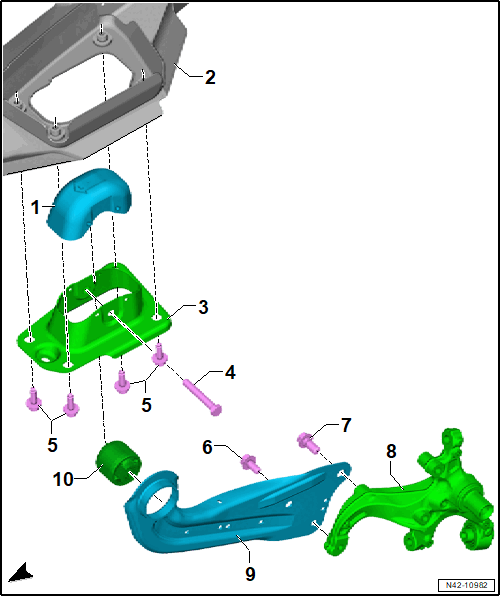

Fig 1: Exploded View Of Trailing Arm

Courtesy of AUDI OF AMERICA, LLC

Cover
Body
Mounting Bracket
- Adjust to the installation position of the mounting bracket to the longitudinal member. Refer to Mounting Bracket Installation Position to Trailing Arm, Adjusting .
Bolt
- 90 Nm + 90°
- Replace after removing
Bolts
- 50 Nm +45°
- Replace after removing
Bolt
- 70 Nm +90°
- Replace after removing
Bolt
- 70 Nm +90°
- Replace after removing
Wheel Bearing Housing
- Allocation. Refer to the => Electronic Parts Information (ETKA).
- Removing and Installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
Trailing Arm
- Removing and Installing. Refer to TRAILING ARM WITH MOUNTING BRACKET, REMOVING AND INSTALLING .
Bonded Rubber Bushing
- Installation position. Refer to Bonded rubber bushing installation position to trailing arm: .
- Replacing. Refer to TRAILING ARM, SERVICING .
