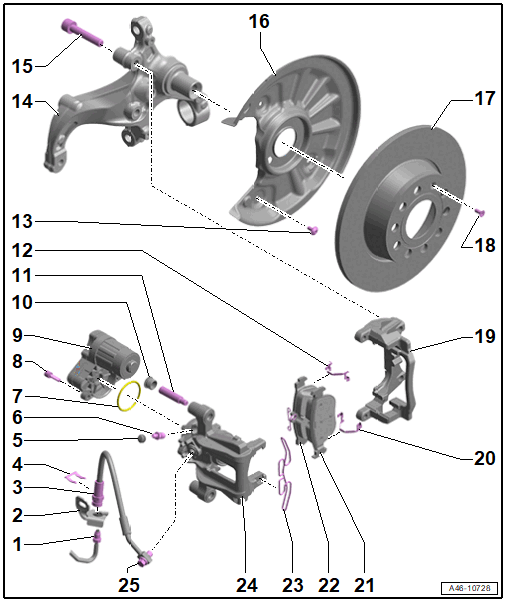

Overview - Rear Brakes
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Brake Line
- 14 Nm
- Bracket
- For the brake line/hose
- On the body
- Brake Hose
- Make sure it is in the installation position
- Spring
- Replace if damaged
- Protective Cap
- Bleed Screw
- 11 Nm
- Seal
- Replace after removing
- Bolt
- 8 Nm
- Parking Brake Motor
- Refer to OVERVIEW - PARKING BRAKE
- Cap
- For the guide pins
- Guide Pin
- 35 Nm
- Spring
- Replace if damaged
- Bolt
- Vehicle with torsion beam axle. Refer to OVERVIEW - WHEEL BEARING .
- Vehicles with multi-link suspension: 12 Nm
- Wheel Bearing Housing
- Bolt
- Replace after removing
- 90 Nm + 90°
- Brake Shield
- Brake Rotor
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Refer to BRAKE ROTOR, CHECKING
- Wear limit specified on the brake rotor
- Always replace on both sides of the axle. Replace the brake pads as well.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING
- Bolt
- 8 Nm
- Brake Carrier
- Spring
- Replace if damaged
- Outer Brake Pad
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Checking the brake pads, wear limit. Refer to BRAKE PADS, CHECKING THICKNESS .
- Always replace on both sides of the axle.
- Refer to BRAKE PADS, REMOVING AND INSTALLING
- Refer to the graphic below
- Inner Brake Pad
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Checking the brake pads, wear limit. Refer to BRAKE PADS, CHECKING THICKNESS .
- Always replace on both sides of the axle.
- Refer to BRAKE PADS, REMOVING AND INSTALLING
- Refer to the graphic below
- Spring
- Brake Caliper
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Do not remove the brake hose when changing the brake pads.
- Installation Position
- Refer to the graphic below
- Refer to the graphic below
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING
- Refer to BRAKE CALIPER, REPLACING
- Banjo Bolt
- Permanent with seals
- Clean any corrosion from the sealing surface on the brake caliper
- If damaged, replace the brake hose
- 35 Nm
Torsion Beam Axle Brake Caliper Installation Position
1 - Brake Caliper
A - Torsion Beam Axle
Multi-Link Suspension Installation Position
1 - Brake Caliper
B - Multi-Link Suspension
Installation position of the brake pads.
A - Inner Brake Pad on Piston Side
B - Outer Brake Pad
- Make sure that the spring sits in the backing plate on the inner brake pad.
