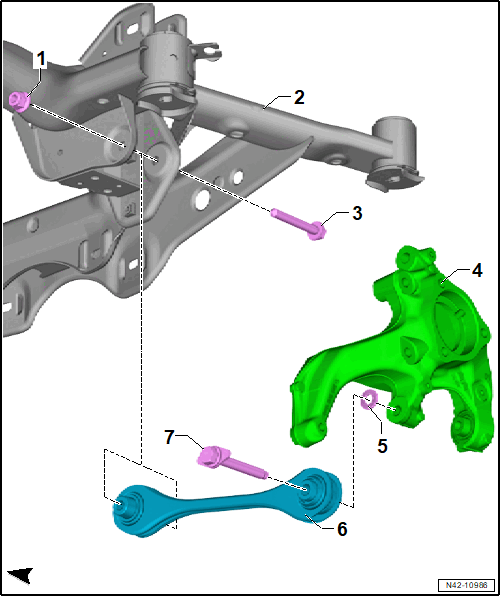

Overview - Tie Rod
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Replace after removing
- Subframe
- Bolt
- 70 Nm + 180°
- Replace after removing
- Tighten the threaded connections in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
- Wheel Bearing Housing
- Washer
- Tie Rod
- Removing and Installing. Refer to TIE ROD, REMOVING AND INSTALLING .
- Bolt
- 70 Nm + 180°
- Replace after removing
- Tighten the threaded connections in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
