Component Location Overview - Airbag System
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

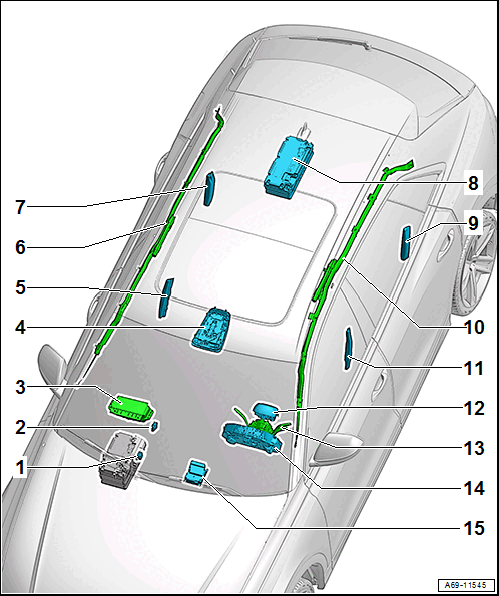

- Battery Interrupt Igniter -N253-
- Refer to BATTERY INTERRUPT IGNITER
- Front Passenger Airbag Deactivation Key Switch -E224-
- Rest of World equipment/market version:
- Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING (NOT FOR NORTH AMERICA MARKET)
- Front Passenger Airbag
- With
- Front Passenger Airbag Igniter 1 -N131-
- Front Passenger Airbag Igniter 2 -N132-
- North American versions: Front Passenger Airbag Release Valve Igniter -N491-
- Rest of World versions: locking and activation possible via the Front Passenger Airbag Deactivation Key Switch -E224-
- Refer to OVERVIEW - FRONT PASSENGER AIRBAG
- With
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Integrated in the Front Roof Module - WX3-, cannot be replaced separately if faulty.
- Replace the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Thorax Airbag on Front Passenger Side
- With Front Passenger Thorax Airbag Igniter -N200-
- Refer to OVERVIEW - FRONT THORAX AIRBAG
- Front Passenger Head Curtain Airbag
- With Front Passenger Head Curtain Airbag Igniter -N252-
- Refer to OVERVIEW - HEAD CURTAIN AIRBAG
- Rear Thorax Airbag on Front Passenger Side
- With Passenger Side Rear Thorax Airbag Igniter -N202-
- Refer to OVERVIEW - REAR THORAX AIRBAG
- Igniter for Battery 2 Interruption -N751-
- Refer to BATTERY INTERRUPT IGNITER
- Rear Thorax Airbag on Driver Side
- With Driver Side Rear Thorax Airbag Igniter -N201-
- Refer to OVERVIEW - REAR THORAX AIRBAG
- Driver Head Curtain Airbag
- With Driver Head Curtain Airbag Igniter -N251-
- Refer to OVERVIEW - HEAD CURTAIN AIRBAG
- Thorax Airbag on Driver Side
- With Driver Thorax Airbag Igniter -N199-
- Refer to OVERVIEW - FRONT THORAX AIRBAG
- Driver Side Airbag
- With
- Driver Airbag Igniter -N95-
- Driver Airbag Release Valve Igniter -N490-
- Refer to OVERVIEW - DRIVER SIDE AIRBAG
- With
- Steering Column Electronics Control Module -J527-
- With Spiral Spring -F350-
- Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
- Airbag Indicator Lamp -K75-
- Integrated in the instrument cluster.
- Replace the instrument cluster if faulty. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Airbag Control Module -J234-
- Refer to OVERVIEW - AIRBAG CONTROL MODULE
