Overview - Rear Thorax Airbag

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

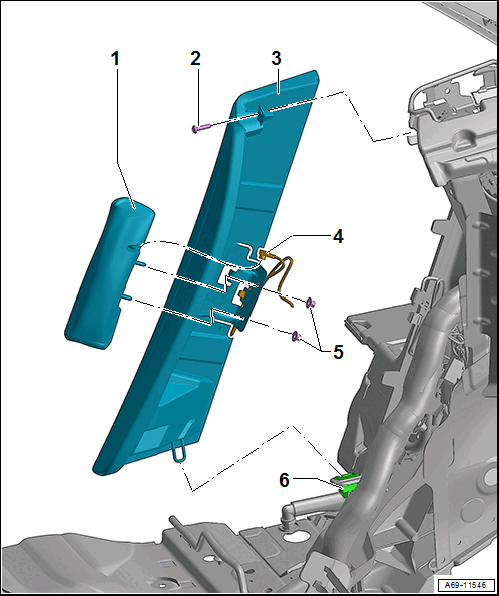

Fig 1: Exploded View Of Rear Thorax Airbag

Courtesy of AUDI

Rear Thorax Airbag
- With
  - Driver Side Rear Thorax Airbag Igniter -N201-
  - Passenger Side Rear Thorax Airbag Igniter -N202-
- Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING
Bolt
- 11 Nm
Side Cushion
- Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING
Connector
- For
  - Driver Side Rear Thorax Airbag Igniter -N201-
  - Passenger Side Rear Thorax Airbag Igniter -N202-
Nut
- 6 Nm
- Replace after removing
- Quantity: 2
Clip
- Replace after removing the side cushion
