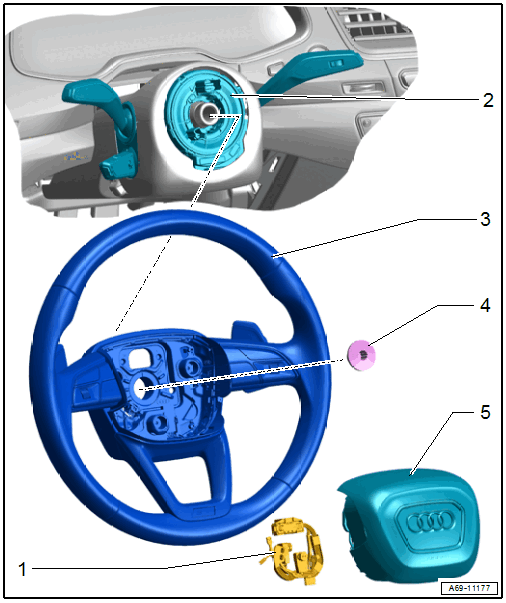

Overview - Driver Side Airbag
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Wiring Harness
- For the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Refer to AIRBAG CONNECTOR, REPLACING
- Steering Column Electronics Control Module -J527-
- With Spiral Spring -F350-
- Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
- Steering Wheel
- Refer to Overview - Steering Wheel .
- Bolt
- Tightening specification. Refer to OVERVIEW - STEERING WHEEL .
- Driver Side Airbag
- With the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING
