Overview - Steering Column Switch Module
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

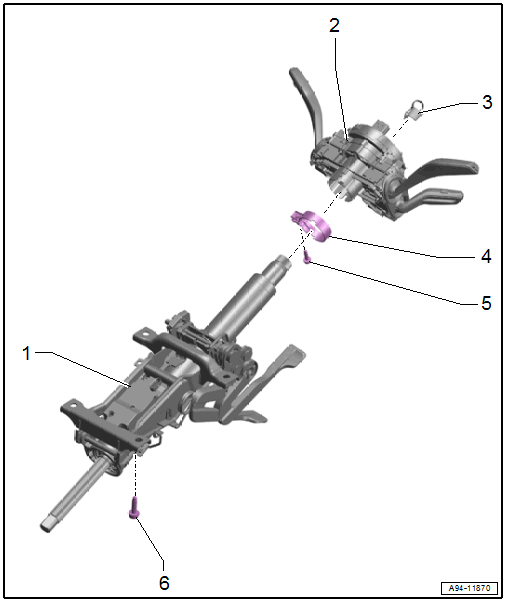

- Steering Column
- Steering Column Switch Module
- With the following integrated components:
- Turn Signal Switch -E2-
- Windshield Wiper Intermittent Mode Switch -E22-
- Cruise Control Switch -E45-
- Steering Column Electronics Control Module -J527-
- Spiral Spring -F350-
- The components cannot be replaced separately.
- If faulty replace a component of the switch module
- Removing and installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .
- With the following integrated components:
- Transportation Protection
- Remove before installing the steering wheel
- Locking Ring
- Bolt
- 6 Nm
- Bolt
- Tightening Specification. Refer to OVERVIEW - STEERING COLUMN .
