Overview - Front Passenger Airbag

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

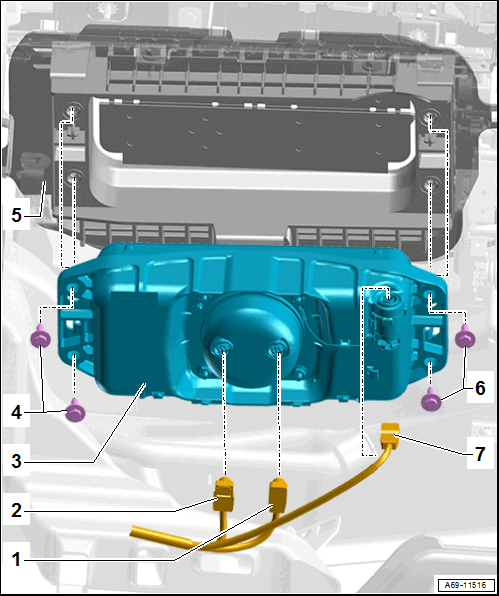

Fig 1: Exploded View Of Front Passenger Airbag

Courtesy of AUDI

Connector
- Market-Specific Version
- For the Front Passenger Airbag Igniter 2 -N132-
Connector
- For the Front Passenger Airbag Igniter 1 -N131-
Front Passenger Airbag Unit -NX3-
- Rest of World equipment/versions: locking and activation possible via the Front Passenger Airbag Deactivation Key Switch -E224-
- Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING
Bolts
- 8 Nm
- Replace after removing
Instrument Panel
- Replace the instrument panel after an airbag has deployed. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolts
- 8 Nm
- Replace after removing
Connector
- Market-Specific Version
- For the Front Passenger Airbag Release Valve Igniter -N491-
- Replace after airbag deployment. Refer to WIRING HARNESSES AND CONNECTORS, REPAIRING .
