Overview - Front Thorax Airbag

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

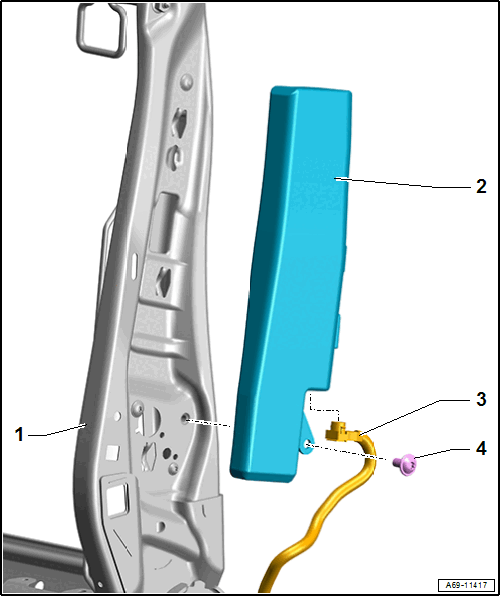

Fig 1: Exploded View Of Front Thorax Airbag

Courtesy of AUDI

Backrest Frame
Front Thorax Airbag
- With
  - Driver Thorax Airbag Igniter -N199-
  - Front Passenger Thorax Airbag Igniter -N200-
- Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING
Wire
- From the Driver Thorax Airbag Igniter -N199- /Front Passenger Thorax Airbag Igniter -N200- directly to the connector station
- Refer to FRONT THORAX AIRBAG WIRE, REMOVING AND INSTALLING
Bolt
- 8 Nm
- Replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
