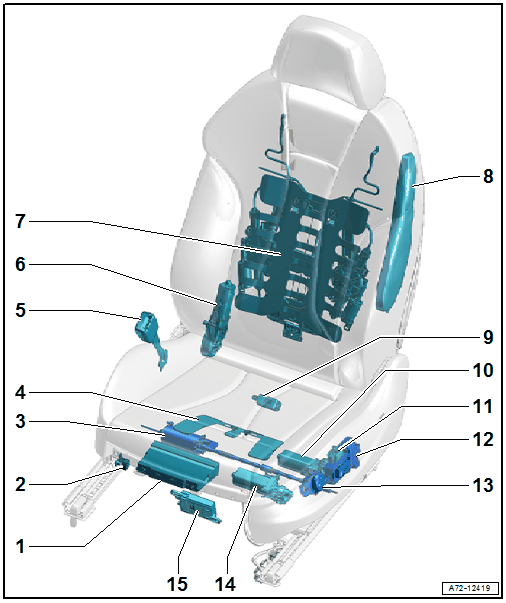

Component Location Overview - Electric And Electronic Components

Courtesy of AUDI OF AMERICA, LLC

Seat Functions Control Module
- Equipped on some models
  - Driver Seat Adjustment Control Module -J810-
  - Front Passenger Seat Adjustment Control Module -J720-
- Removing and Installing. Refer to SEAT FUNCTIONS CONTROL MODULE, REMOVING AND INSTALLING .
Seat Position Sensor
- North American market-specific
  - Driver Seat Position Sensor -G553-
  - Front Passenger Seat Position Sensor -G554-
- Overview. Refer to OVERVIEW - SEAT POSITION SENSOR .
Seat Forward/Back Adjustment Motor
- Equipped on some models
  - Driver Seat Forward/Back Adjustment Motor -V28-
  - Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Motor and seat pan lower frame are pre-adjusted from the manufacturer; if the seat pan lower frame is faulty replace it. Refer to SEAT PAN, REMOVING AND INSTALLING, POWER FRONT SEAT .
Passenger Seat Occupant Detection Sensor -G128-
- Vehicles version front passenger side only
- Removing and Installing. Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING .
- Press the clips back on until they click into place.
Seat Belt Switch
- Driver Seat Belt Switch -E24-
- Front Passenger Seat Belt Switch -E25-
- Integrated into seat belt buckle. Cannot be replaced separately if faulty.
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Backrest Adjustment Motor
- Equipped on some models
  - Driver Backrest Adjustment Motor -V45-
  - Front Passenger Backrest Adjustment Motor -V46-
- Overview. Refer to OVERVIEW - FRONT BACKREST, BACKREST ADJUSTMENT MOTOR .
Lumbar Support
- Equipped on some models
  - Driver Seat Lumbar Support Curvature Adjustment Motor -V125-
  - Driver Seat Lumbar Support Height Adjustment Motor -V129-
  - Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-
  - Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
- Overview. Refer to OVERVIEW - FRONT BACKREST, LUMBAR SUPPORT .
Front Thorax Airbag
- with
  - Driver Thorax Airbag Igniter -N199-
  - Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
Rear Footwell Lamp
- Equipped on some models
  - Left Rear Footwell Lamp -W45-
  - Right Rear Footwell Lamp -W46-
- Removing and Installing. Refer to LEFT REAR FOOTWELL LAMP -W45- /RIGHT REAR FOOTWELL LAMP -W46-, REMOVING AND INSTALLING .
Seat Height Adjustment Motor
- Equipped on some models
  - Driver Seat Height Adjustment Motor -V245-
  - Front Passenger Seat Height Adjustment Motor -V246-
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT HEIGHT ADJUSTMENT MOTOR .
Massage Button
- Equipped on some models
  - Driver Side Massage Function Button -E670-
  - Front Passenger Massage Function Button -E671-
- Removing and Installing. Refer to DRIVER SIDE MASSAGE FUNCTION BUTTON -E670- / FRONT PASSENGER MASSAGE FUNCTION BUTTON -E671-, REMOVING AND INSTALLING .
Seat Adjustment Control Head
- Equipped on some models
  - Driver Seat Adjustment Control Head -E470-
  - Front Passenger Seat Adjustment Control Head -E471-
- Overview. Refer to OVERVIEW - SEAT PAN, SIDE SILL/TUNNEL SIDE SEAT SIDE TRIM ON POWER FRONT SEAT .
Lumbar Support Adjustment Switch
- Equipped on some models
  - Driver Seat Lumbar Support Adjustment Switch -E176-
  - Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Overview. Refer to OVERVIEW - SEAT PAN, SIDE SILL/TUNNEL SIDE SEAT SIDE TRIM ON POWER FRONT SEAT .
Seat Angle Adjustment Motor
- Equipped on some models
  - Driver Seat Angle Adjustment Motor -V243-
  - Front Passenger Seat Angle Adjustment Motor -V244-
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT ANGLE ADJUSTMENT MOTOR .
Seat Occupant Detection System Control Module -J706-
- North American market-specific
- Only the front passenger side
- Clipped in the storage compartment.
