Overview - Seat Pan, Side Sill/Tunnel Side Seat Side Trim On Power Front Seat

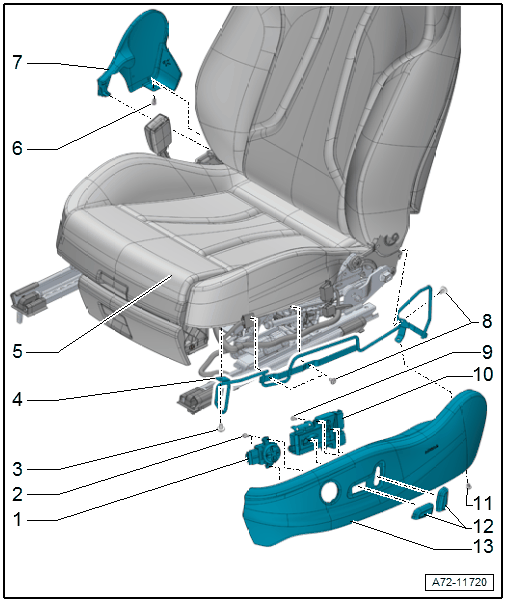

Fig 1: Exploded View Of Seat Pan, Side Sill/Tunnel Side Seat Side Trim On Power Front Seat

Courtesy of AUDI OF AMERICA, LLC

Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 0.4 Nm
Bolt
- 7.5 Nm
Bracket for seat side trim on side sill side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, POWER FRONT SEAT .
Front Seat
Expanding Rivet
Tunnel Side Seat Side Trim
- Removing and Installing. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 7.5 Nm
Bolt
- Quantity: 3
- 0.4 Nm
Driver Seat Adjustment Control Head -E470-
- with:
  - Driver Backrest Adjustment Switch -E96-
  - Driver Seat Angle Adjustment Switch -E222-
  - Driver Seat Forward/Back Adjustment Switch -E363-
  - Driver Seat Height Adjustment Switch -E364-
- Front passenger side: Front Passenger Seat Adjustment Control Head -E471- with:
  - Front Passenger Seat Forward/Back Adjustment Switch -E64-
  - Front Passenger Backrest Adjustment Switch -E98-
  - Front Passenger Seat Angle Adjustment Button -E334-
  - Front Passenger Seat Height Adjustment Switch -E365-
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD -E470- / -E471-, REMOVING AND INSTALLING .
Expanding Rivet
Seat adjustment control
- Clipped on
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD -E470- / -E471-, REMOVING AND INSTALLING .
- Press on until it engages audibly
Seat Side Trim on Side Sill
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, POWER FRONT SEAT .
