Overview - Seat Position Sensor

NOTE:

The illustration shows the passenger seat position sensor with the wiring harness.

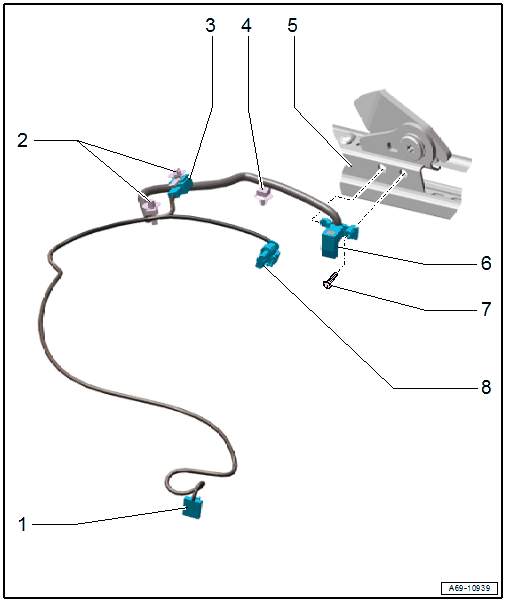

Fig 1: Exploded View Of Seat Position Sensor
GWWA69-10939Courtesy of AUDI OF AMERICA, LLC
  1. Coupling Connector
    • Connector station in the vehicle floor under on the side sill under the seat.
  2. Cable Holder/Cable Tie
    • Clip into the seat pan
  3. Coupling Connector for Seat Belt Latch
  4. Cable Holder/Cable Tie
    • Clip into the seat pan
  5. Seat Rail
    • Tunnel-side
  6. Front Passenger Seat Position Sensor -G554-
  7. Bolt
    • 1.2 Nm
  8. Coupling Connector
    • Only for the front passenger seat: for Passenger Occupant Detection System Control Module -J706-
