Overview - Seat Pan, Seat Height Adjustment Motor

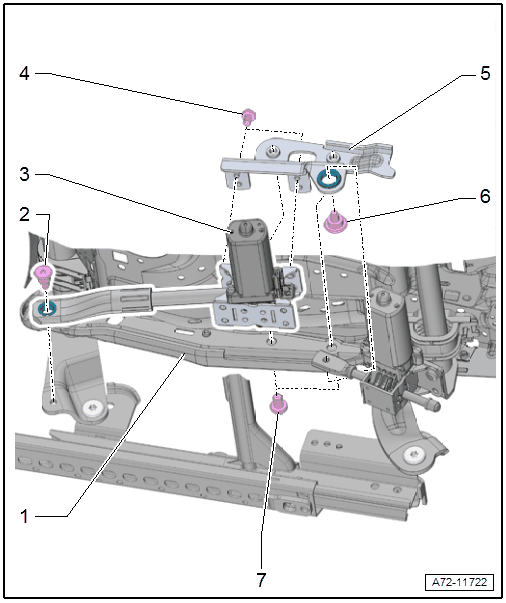

Fig 1: Exploded View Of Seat Pan Seat Height Adjustment (Power)

Courtesy of AUDI OF AMERICA, LLC

1. Seat Pan
2. Bolt
   CAUTION:

   The bolt has a left-hand thread.

   • Self-locking
   • Always replace after removing
   • Clean the threaded hole for the bolt with a thread tap, for example
   • 18 Nm
3. Driver Seat Height Adjustment Motor -V245-
   • Front passenger side: Front Passenger Seat Height Adjustment Motor -V246-
   • Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT HEIGHT ADJUSTMENT MOTOR -V245- AND -V246-, REMOVING AND INSTALLING .
4. Bolt
   • Quantity: 2
   • Self-locking
   • Always replace after removing
   • Threaded holes for the bolts must be cleaned, for example, with a thread tap
   • 10 Nm
5. Bracket
   • Bolted to the seat pan
6. Bolt
   • Self-locking
   • Always replace after removing
   • Clean the threaded hole for the bolt with a thread tap, for example
   • Tightening specification Refer to OVERVIEW - SEAT PAN, SEAT ANGLE ADJUSTMENT MOTOR .
7. Bolt
   • Quantity: 2
   • Self-locking
   • Always replace after removing
   • Threaded holes for the bolts must be cleaned, for example, with a thread tap
   • 28 Nm
