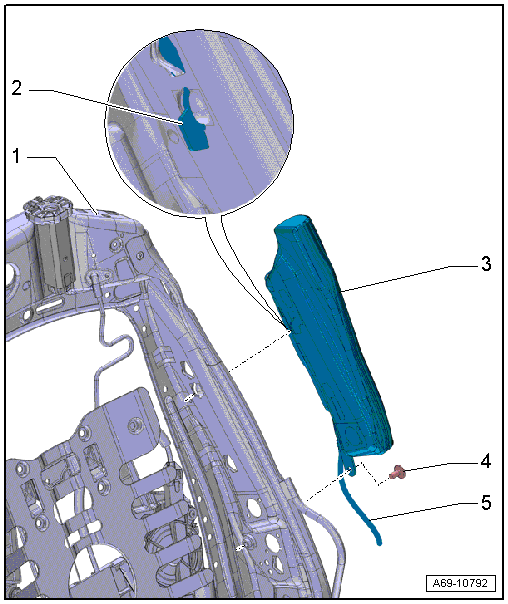

Overview - Front Thorax Airbag
- Backrest Frame
- Hook
- For securing the thorax airbag to the backrest frame
- Front Thorax Airbag
- Driver side: with Driver Thorax Airbag Igniter -N199-
- Front passenger side: with Front Passenger Thorax Airbag Igniter -N200-WARNING:
Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- Always replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
- Install with locking compound. Refer to the Parts Information for the locking compound.
- 8 Nm
- Wire
- From Driver Thorax Airbag Igniter -N199- /Front Passenger Thorax Airbag Igniter -N200- directly to the connector station
