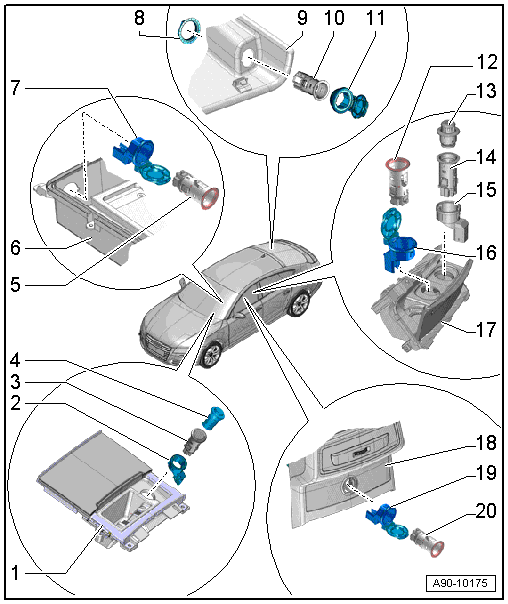

Cigarette Lighter, 12 Volt Outlet, Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Ashtray
- For the Cigarette lighter -U1-.
- Cigarette Lighter Illumination -L28-
- For the Cigarette lighter -U1-.
- Can only be replaced together with the cigarette lighter.
- Cigarette Lighter -U1-
- Removing and installing, refer to CIGARETTE LIGHTER -U1- .
- Cigarette Lighter
- 12 V Outlet -U5-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET .
- Storage Compartment
- In center console
- Socket Illumination -L42-
- For the 12 V socket -U5-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET .
- Nut
- 2 Nm
- Luggage Compartment Side Trim Panel Cover
- 12 V Socket 3 -U19-
- Removing and installing, refer to 12 V SOCKET 3 FROM TRIM PANEL .
- Removing and installing, refer to 12 V SOCKET 3 .
- Mount With Cover
- For the 12 V socket 3 -U19-.
- 12 V Socket 4 -U20-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 4 .
- Cigarette Lighter
- Rear Cigarette Lighter -U9-
- Removing and installing, refer to REAR CIGARETTE LIGHTER ILLUMINATION BULB .
- Rear Cigarette Lighter Illumination Bulb -L32-
- For the Rear cigarette lighter -U9-.
- Removing and installing, refer to REAR CIGARETTE LIGHTER ILLUMINATION BULB .
- Socket Illumination -L42-
- For the 12 V socket 4 -U20-.
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 4 .
- Mount
- For the cigarette lighter and socket.
- Equipment level
- Divider
- For the center console.
- Equipment level
- Socket Illumination -L42-
- For the 12 V socket 2 -U18-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 2 .
- 12 V Socket 2 -U18-
- Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 2 .
