Socket Illumination Bulb, 12 V Socket

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Release Tool T40148

Removal

Fig 1: Identifying Electric Wire

Courtesy of AUDI OF AMERICA, LLC

-- Remove the storage compartment inside the center console. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

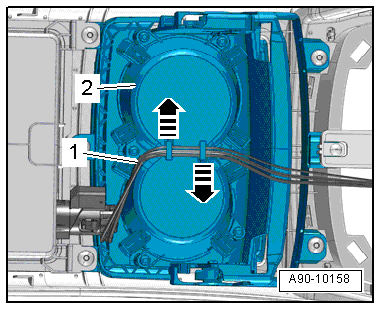

-- Free up the electric wire -1- on the cupholder -2- -arrows-.

-- The release tabs -2- on the release tool T40148 must engage in the openings in the 12V socket -3- -arrow- and the threaded pin -1- must slide down as far as the stop.

Fig 2: 12 V Socket 5 -U26- -Item 3

Courtesy of AUDI OF AMERICA, LLC

-- Open the cover -1- on the 12 V socket and hold it in this position.

Fig 3: Identifying Cover

Courtesy of AUDI OF AMERICA, LLC

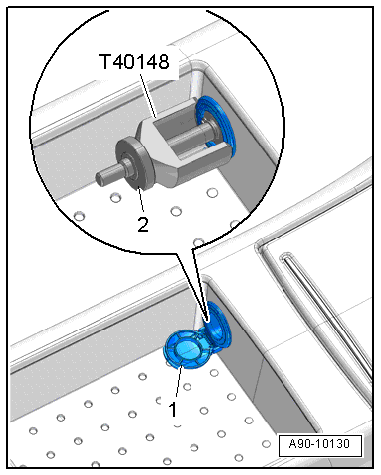

-- Slide the T40148 all the way into the 12V socket.

-- Rotate the thumb-wheel -2- on the T40148 clockwise as far as the stop.

The piston -2- is pulled upward and the release tabs -1- on the T40148 spread -arrows-.

Fig 4: Identifying Release Tool T40148, Removal
Courtesy of AUDI OF AMERICA, LLC

-- Remove the 12V socket from the illumination ring with the Socket illumination -L42- using the T40148.

-- Disconnect the electrical connector.

-- Open the clips -arrows-.

Fig 5: Identifying Socket Illumination Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the illumination ring -1- with the Socket illumination bulb -L42- from the storage compartment -2- in the inside the center console.

Installation

Fig 6: Identifying Support, Thumbwheel, Release Tabs, Release Tool T40148 & Cigarette Lighter

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal, observing the following:

-- Remove the support -1- on the T40148.

-- Slide the piston down and hold it in place.

-- Rotate the thumb-wheel -4- on the T40148 counterclockwise -arrow-. This loosens the release tabs -2- on the 12V socket -3- so the T40148 can be removed.

-- Install the storage compartment back into the center console. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING . .
