12 V Socket 3 From Trim Panel
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Release Tool T40148
Removal
-- Remove the luggage compartment side trim panel cover. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

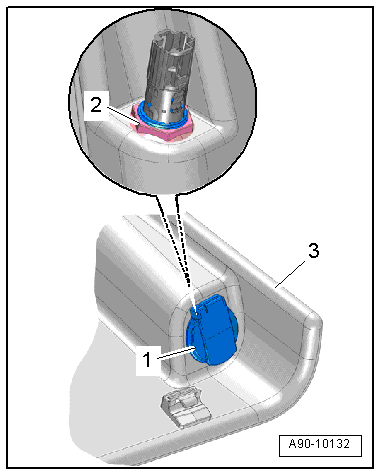

-- Remove the nut -2-.
-- Remove the 12 V socket -1- from the luggage compartment trim panel -3-.
Installation
- Tightening specification, refer to CIGARETTE LIGHTER, 12 VOLT OUTLET, OVERVIEW .
Install in reverse order of removal, observing the following:
-- Install the luggage compartment side trim panel cover. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
