Socket Illumination Bulb, 12 V Socket 4

Special Tools And Workshop Equipment Required

• Release Tool T40148

Removal

Fig 1: 12 V Socket 5 -U26- -Item 3

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount for the cigarette lighter and the socket. .

-- The release tabs -2- on the release tool T40148 must engage in the openings in the 12V socket -3- -arrow- and the threaded pin -1- must slide down as far as the stop.

-- Open the cover -3- for the 12 V socket.

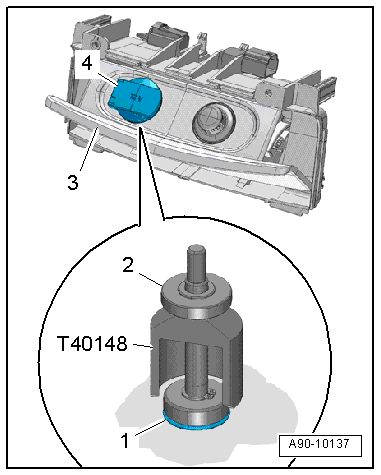

Fig 2: Identifying 12 V Cover

Courtesy of AUDI OF AMERICA, LLC

-- Open the cover -4- on the 12 V socket and hold it in this position.

-- Slide the T40148 as far as the stop into the 12V socket -1-.

-- Rotate the thumb-wheel -2- on the T40148 clockwise as far as the stop.

• The piston -2- is pulled upward and the release tabs -1- on the T40148 spread -arrows-.
  Fig 3: Identifying Release Tool T40148, Removal

  Courtesy of AUDI OF AMERICA, LLC

-- Remove the 12 V socket from the illumination ring with bulb using the T40148.

-- Open the clips -arrows-.

Fig 4: Identifying Socket Illumination Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the 12 V socket and illumination ring -1- from the mount -2-.

-- Guide the wire through the mount.

Installation

Fig 5: Identifying Support, Thumbwheel, Release Tabs, Release Tool T40148 & Cigarette Lighter

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal, observing the following:

-- Remove the support -1- on the T40148.

-- Slide the piston down and hold it in place.

-- Rotate the thumb-wheel -4- on the T40148 counterclockwise -arrow-. This loosens the release tabs -2- on the 12V socket -3- so the T40148 can be removed.

-- Install the mount for the cigarette lighter and the socket. .
