Socket Illumination Bulb, 12 V Socket 2

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Release Tool T40148

Removal

Fig 1: 12 V Socket 5 -U26- -Item 3

Courtesy of AUDI OF AMERICA, LLC

-- The release tabs -2- on the release tool T40148 must engage in the openings in the 12V socket -3- -arrow- and the threaded pin -1- must slide down as far as the stop.

-- Open the cover -1- on the 12 V socket and hold it in this position.

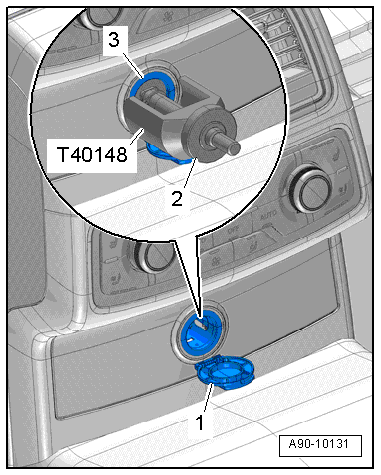

Fig 2: Identifying Cover

Courtesy of AUDI OF AMERICA, LLC

-- Slide the T40148 as far as the stop into the 12V socket -3-.

-- Rotate the thumb-wheel -2- on the T40148 clockwise as far as the stop.

The piston -2- is pulled upward and the release tabs -1- on the T40148 spread -arrows-.

Fig 3: Identifying Release Tool T40148, Removal
Courtesy of AUDI OF AMERICA, LLC

-- Remove the 12V socket from the illumination ring with the Rear cigarette lighter illumination bulb -L32- using the T40148.

-- Open the clips -arrows-.

Fig 4: Identifying Socket Illumination Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the 12 V socket and illumination ring -1- from the trim -2-.

-- Guide the electric wire through the mount -arrow- and disconnect it.

Installation

Fig 5: Identifying Support, Thumbwheel, Release Tabs, Release Tool T40148 & Cigarette Lighter

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal, observing the following:

-- Remove the support -1- on the T40148.

-- Slide the piston down and hold it in place.

-- Rotate the thumb-wheel -4- on the T40148 counterclockwise -arrow-. This loosens the release tabs -2- on the 12V socket -3- so the T40148 can be removed.
