Sealing flanges and flywheel/drive plate, removing and installing: Notes
WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

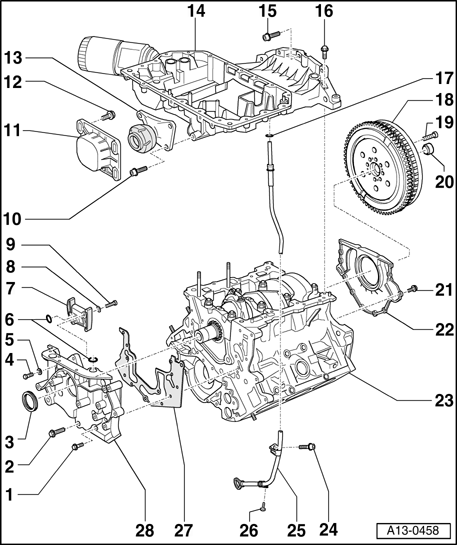

NOTE:
Servicing clutch.
Refer to
- 30 CLUTCH for 5 SPD. MANUAL TRANSMISSION 012/01W FRONT WHEEL DRIVE
- 30 CLUTCH for 5 SPD. MANUAL TRANSMISSION 01A ALL WHEEL DRIVE
- 30 CLUTCH for 6 SPD. MANUAL TRANSMISSION 01E ALL WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 01X, FRONT-WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 02X, FOUR-WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 0A3, ALL WHEEL DRIVE
1 - 10 Nm
2 - 30 Nm
- Self-locking
- Always replace
3 - Seal
- For crankshaft
- Removing and installing. Refer to Seal for crankshaft (ribbed belt side), replacing
4 - Locking bolt - 10 Nm
5 - Seal
- Always replace
6 - O-ring
- Always replace
7 - Chain tensioner
- Removing and installing. Refer to Drive chain or chain tensioner for oil pump, removing and installing
8 - Washer
9 - 12 Nm
10 - 40 Nm
11 - Stop
- For torque support
12 - 28 Nm
13 - Torque support
14 - Oil pan (upper part)
- Removing and installing. Refer to Oil pan (upper part), removing and installing
15 - 45 Nm
16 - M7 = 16 Nm, M8 = 22 Nm
17 - O-ring
- Always replace
18 - Dual-mass flywheel or drive plate
- Flywheel, removing and installing. Refer to Flywheel and drive plate, removing and installing
- Drive plate, removing and installing. Refer to Drive plate for automatic transmission 01V
19 - Special bolt
- Always replace
- Tightening torque. Refer to Tightening torques for Dual-mass flywheel or flywheel for automatic transmission 01J or Tightening torques for Drive plate for automatic transmission 01V
20 - Needle bearing
- Removing and installing. Refer to Dual-mass flywheel pilot needle bearing, removing and installing
- Not for automatic transmission 01V
- For automatic transmission 01V, a centering bushing is bolted into crankshaft instead of needle bearing. See Centering bushing of drive plate for automatic transmission 01V
21 - 10 Nm
22 - Sealing flange rear with oil seal
- Removing and installing. Refer to Rear sealing flange, removing and installing
- Lightly oil lip of O-ring.
- To install, slide guide sleeve from kit onto crankshaft
23 - Cylinder block
- Crankshaft, removing and installing. Refer to Crankshaft, removing and installing
- Pistons and connecting rods, disassembling and assembling. Refer to Pistons and connecting rods, disassembling and assembling
24 - 20 Nm
25 - Guide tube for oil dipstick
26 - Sheet metal screw
27 - Gasket
- Always replace
28 - Sealing flange, front
- Removing and installing. Refer to Front sealing flange, removing and installing
