Front Bumper Assembly Overview

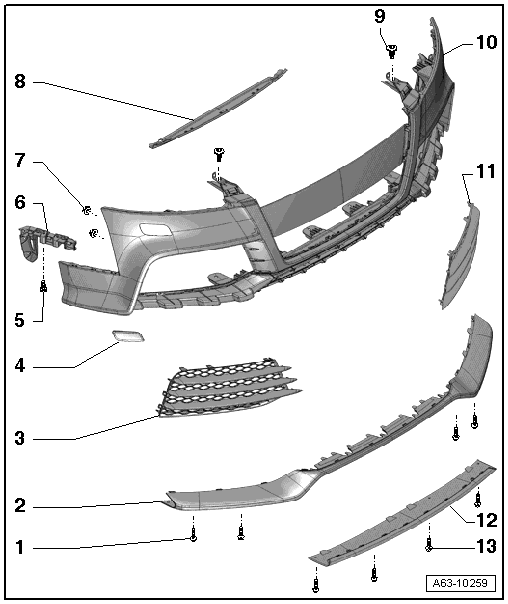

Fig 1: Identifying Front Bumper Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Quantity: 4
   • 2 Nm
2. Upper part of spoiler
   • Removing and Installing, refer to SPOILER UPPER PART
3. Right air intake grille
   • Removing and Installing, refer to AIR INTAKE GRILLE
4. Right spray nozzle cover
   • for the headlamp washer system
   • Removing and Installing, refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation
5. Bolt
   • Quantity: 4
   • 2 Nm
6. Guide piece
   • Removing and Installing, refer to FRONT BUMPER GUIDE PIECE
7. Nut
   • Quantity: 4
   • 4 Nm
8. Inner cover
   • Removing and Installing, refer to INNER COVER
9. Bolt
   • Quantity: 2
   • Tightening Specifications and Sequence Fig 2
10. Bumper
    • Removing and Installing, refer to FRONT BUMPER
11. Left air intake grille
    • Removing and Installing, refer to AIR INTAKE GRILLE
12. Lower part of spoiler
    • Removing and Installing, refer to SPOILER LOWER PART
13. Bolt
    • Quantity: 4
    • 2 Nm

Fig 2: Identifying Torque Sequence For Upper Bumper

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in a -1 to 4- sequence to 5 Nm.
