Front Bumper

Special tools and workshop equipment required

Removing

Fig 1: Locating Wheel Housing Liner Screws

Courtesy of AUDI OF AMERICA, LLC

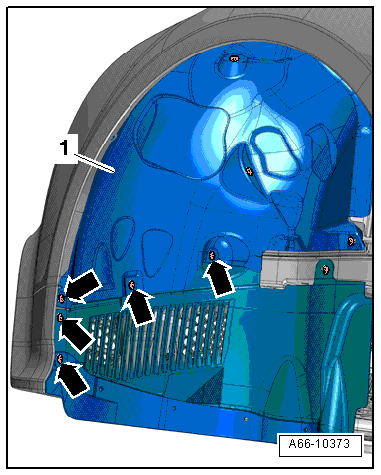

-- Unscrew the screws -arrows- and pull back the wheel housing liner in the lower area.

-- Remove the left front wheel spoiler. Refer to FRONT WHEEL SPOILER

Fig 2: Identifying Washer Fluid Line

Courtesy of AUDI OF AMERICA, LLC

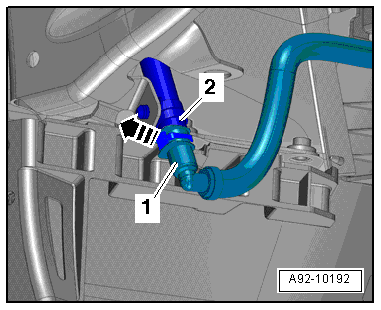

-- Release the securing clamp -arrow - and remove washer fluid line -1- on connecting piece -2-.

-- Seal the connecting piece of the washer fluid line with a clean plug from the VAS 6122.

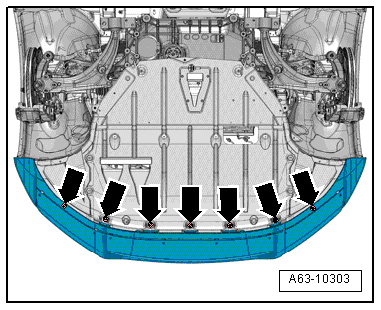

-- Remove the bolts -arrows-.

Fig 3: Locating Bumper Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper bumper covers. Refer to RADIATOR GRILLE COVER .

Fig 4: Identifying Bumper Cover Screws & Nuts

Courtesy of AUDI OF AMERICA, LLC

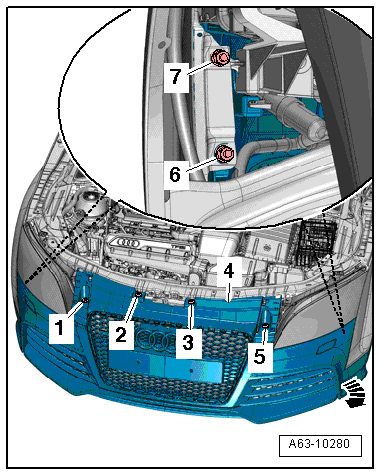

-- Unscrew screws -1, 2, 3, 5- and nuts -6- and -7-.

-- Remove the bumper rear edge from the guide piece/fender -arrow-.

-- Remove bumper -4- in a forward direction.

Installation

Fig 5: Torque Sequence For Upper Bumper

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Use the markings -arrow- on the radiator grille for exact adjustment in the longitudinal direction.

-- Tighten the screws in the sequence -1-4-.
