Front Bumper Guide Piece

Removing

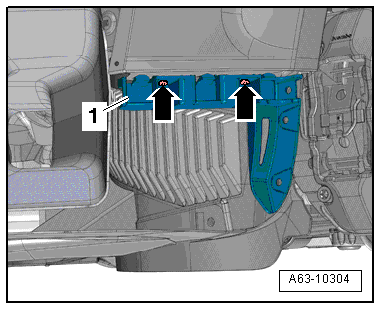

Fig 1: Identifying Front Bumper Guide Piece

Courtesy of AUDI OF AMERICA, LLC

-- Remove bumper. Refer to FRONT BUMPER .

-- Remove the screws -arrows- and guide piece -1- on the fender.

Installation

• For the correct tightening specifications, refer to FRONT BUMPER ASSEMBLY OVERVIEW .

Install in reverse order of removal. Note the following:

-- Install the bumper. Refer to FRONT BUMPER .
