Spoiler Upper Part

Removing

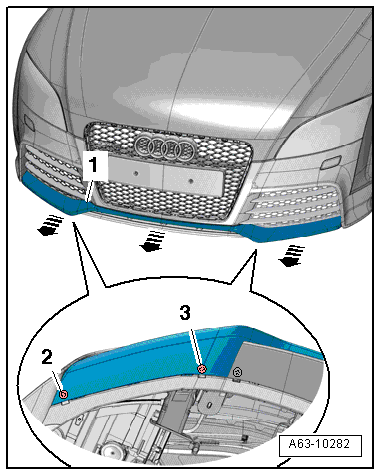

Fig 1: Identifying Spoiler Upper Part

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and -3-.

-- Remove spoiler upper part -1- on the outside starting at the bumper -arrows-.

Installation

• For the correct tightening specifications, refer to FRONT BUMPER ASSEMBLY OVERVIEW .

Install in reverse order of removal. Note the following:

-- During installing, the retaining tabs must engage completely in the bumper.
