Air Intake Grille

Removing

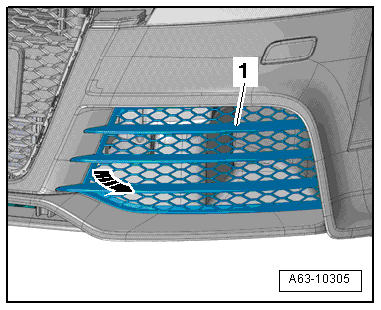

Fig 1: Identifying Air Intake Grille

Courtesy of AUDI OF AMERICA, LLC

-- Pull air intake grille -1- off of the bumper cover -arrow- and remove it.

Installation

Install in reverse order of removal. Note the following:

-- The retaining tabs must engage completely in the bumper.
