Inner Cover

Removing

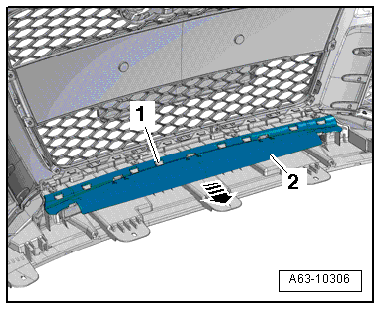

Fig 1: Identifying Inner Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove bumper. Refer to FRONT BUMPER .

-- Release retaining tabs -1- and remove inner cover -2- -arrow-.

Installation

Install in reverse order of removal. Note the following:

-- The retaining tabs must engage completely.

-- Install the bumper. Refer to FRONT BUMPER .
