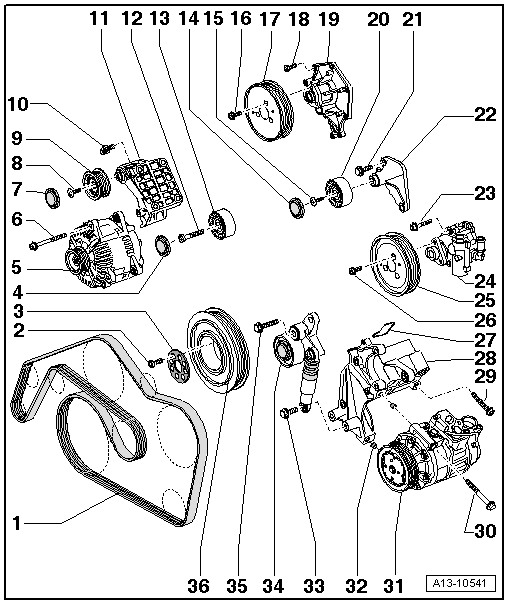

Ribbed Belt Drive Overview
WARNING: This page is about a different variant/trim than selected.
- Ribbed Belt
- Check for wear.
- Before Removal, mark the direction of rotation using chalk or a felt-tip pen.
- Removing and Installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
- Do not kink.
- When Installation, make sure it is seated correctly on the ribbed belt pulleys.
- Bolt
- 20 Nm + 90°
- Replace
- Shim
- Replace
- Idler Roller Cover
- Generator
- Removing and Installing. Refer to GENERATOR, REMOVING AND INSTALLING .
- Bolt
- Tightening specifications: 23 Nm. .
- Idler Roller Cover
- Bolt
- 23 Nm
- Idler Roller for Ribbed Belt
- On the generator bracket.
- Pay attention to the installed position.
- Bolt
- 40 Nm
- Generator and Idler Roller Bracket
- Bolt
- 23 Nm
- Right Idler Roller for Ribbed Belt
- Pay attention to the installed position.
- Left Idler Roller Cover
- Bolt
- 23 Nm
- Bolt
- Tightening specification, refer to -Item 13- COOLANT PUMP AND COOLANT THERMOSTAT OVERVIEW .
- Coolant Pump Ribbed Belt Pulley
- Removing and Installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence, refer to Fig 2.
- Coolant Pump
- Removing and Installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
- Left Idler Roller for Ribbed Belt
- Removing and Installing. Refer to LEFT RIBBED BELT IDLER ROLLER, REMOVING AND INSTALLING .
- Pay attention to the installed position.
- Bolt
- 23 Nm
- Idler Roller Holder
- Bolt
- Tightening specification. Refer to Special Tools .
- Power Steering Pump
- Removing and Installing. Refer to Special Tools .
- Power Steering Pump Ribbed Belt Pulley
- Removing and Installing. Refer to Special Tools .
- Bolt
- Tightening specification. Refer to Special Tools .
- Seal
- Replace
- Auxiliary Components Bracket
- Removing and Installing. Refer to LEFT COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Bolt
- Tightening specification: 25 Nm. .
- A/C Compressor
- Do not remove or disconnect refrigerant lines.
- Removing and Installing. Refer to COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
- Be careful of the alignment sleeves -item 32- when Installation.
- Alignment Sleeve
- Quantity: 2
- Make sure the accessory assembly bracket fits correctly.
- Bolt
- 23 Nm
- Ribbed Belt Tensioning DamperCAUTION:
Depending on the vehicle equipment level, the bracket in the cylinder crankshaft housing for the tensioner can be designed using an M10 or M11 thread. The bolt and the tensioner for the cylinder crankshaft housing must absolutely be perfectly allocated.
- Removing and Installing. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
- Bolt
- M10 bolt: 50 Nm +90°
- M11 bolt: 60 Nm +90°
- ReplaceCAUTION:
Differing threads in the crankshaft housing.
Before assembling, check whether the thread is an M10 or M11.
Use the proper bolt size. The engine could be damaged.
The bolt and the tensioner for the cylinder crankshaft housing must absolutely be perfectly allocated.
- Vibration Damper with Ribbed Belt Pulley
- Removing and Installing. Refer to VIBRATION DAMPER WITH RIBBED BELT PULLEY, REMOVING AND INSTALLING .
