Left Ribbed Belt Idler Roller, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

Removal

Fig 1: Identifying Toothed Belt Guard

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt from the tensioner. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Tilt the toothed belt guard forward -arrows- and disengage the pins on the underside of the guard.

NOTE:

The toothed belt guard is shown with the intake manifold upper section removed.

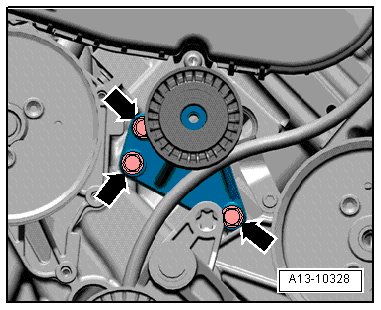

-- Remove the bolts -arrows- and the ribbed belt idler roller.

Fig 2: Identifying Bolts -Arrows- And Ribbed Belt Idler Roller

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .
