Instrument Panel Overview

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

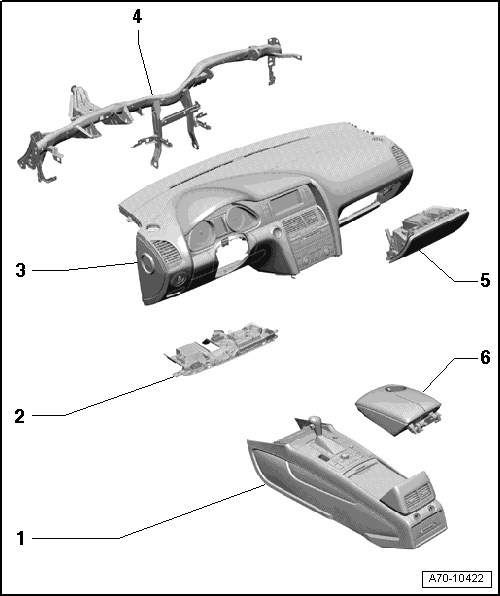

Fig 1: Identifying Storage Compartments And Covers Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Center Console
- Assembly Overview. Refer to CENTER CONSOLE OVERVIEW .
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Driver Side Instrument Panel Covers
- Assembly Overview. Refer to INSTRUMENT PANEL COVERS ON DRIVER SIDE OVERVIEW .
- Instrument Panel Cover, Removing and Installing, Lower, Driver Side. Refer to LOWER DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING
- Instrument Panel cover, Removing and Installing, Upper, Driver Side, Removing and Installing. Refer to UPPER INSTRUMENT COVER, DRIVER SIDE KNEE BAR, REMOVING AND INSTALLING
Instrument Panel
- Assembly Overview. Refer to INSTRUMENT PANEL OVERVIEW .
- Removing and Installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Instrument Panel Central Tube
- Assembly Overview. Refer to INSTRUMENT PANEL CENTRAL TUBE OVERVIEW .
- Removing and Installing. Refer to INSTRUMENT PANEL CENTRAL TUBE, REMOVING AND INSTALLING .
Glove Compartment and Front Passenger Side Instrument Panel Cover
- Assembly Overview. Refer to GLOVE COMPARTMENT AND INSTRUMENT PANEL COVER, PASSENGER SIDE OVERVIEW .
- Removing and installing the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
- Passenger side instrument panel cover, removing and installing. Refer to FRONT PASSENGER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
Front Center Armrest
- Assembly Overview. Refer to FRONT CENTER ARMREST OVERVIEW .
- Removing and Installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .

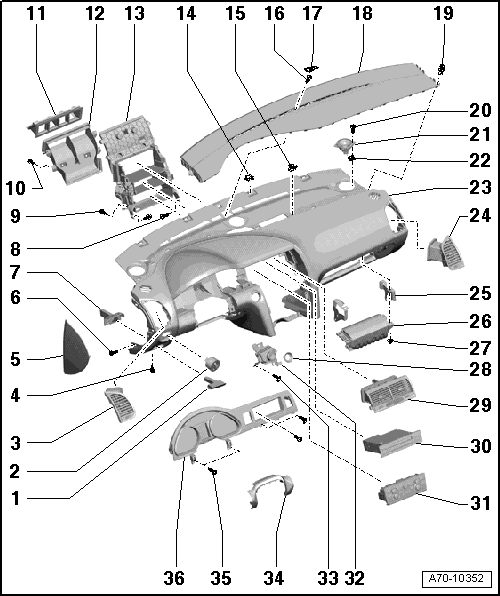

Fig 1: Instrument Panel Components Overview

Courtesy of AUDI OF AMERICA, LLC

Parking Brake Release Handle
Light Switch
- Removing and Installing. Refer to LIGHT SWITCH, REMOVING AND INSTALLING .
Left Side Instrument Panel Vent
- Removing and Installing. Refer to SIDE INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Bolt
- 1.4 Nm
Side Instrument Panel Cover
- Removing and Installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
Bolt
- 1.4 Nm
Guide
- For parking brake release handle.
Bolt
- 1.4 Nm
Bolt
- 0.6 Nm
Bolt
- 0.6 Nm
Upper Center Air Duct
- Depending on equipment with Indirect Ventilation Door Motor -V213-.
Center Air Duct
Installation Frame
- For the center instrument panel vent, CD Changer -R41-, Climatronic Control Module -J255- (also called "A/C control head").
- Removing and Installing. Refer to INSTALLATION FRAME, REMOVING AND INSTALLING .
Clips
Clips
Bolt
- 1.4 Nm
Sunlight Photo Sensor -G107-
- Removing and Installing. Refer to SUNLIGHT PHOTO SENSOR -G107- .
Indirect Ventilation Trim
- With defroster vent.
- Removing and Installing. Refer to INDIRECT VENTILATION TRIM, REMOVING AND INSTALLING .
Expanding Pin
Bolt
- 1.8 Nm
Speaker
- Removing and Installing. Refer to SOUND SYSTEMS .
Spring Nut
Instrument Panel
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Follow the allocation of the airbag unit to the instrument panel. .
- Removing and Installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Right Side Instrument Panel Vent
- Removing and Installing. Refer to SIDE INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Front Passenger Airbag Unit Bracket
Airbag Unit, Front Passenger Side
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Follow the allocation of the airbag unit to the instrument panel. .
- Assembly Overview. Refer to FRONT PASSENGER AIRBAG UNIT OVERVIEW .
- Locking and activating possible with key switch
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT, REMOVING AND INSTALLING .
Nut
- 7 Nm
Trim
- For Access/Start Authorization Switch -E415-. Refer to Access/Start Authorization Switch -E415-, REMOVING AND INSTALLING .
Center Instrument Panel Vent
- Removing and Installing. Refer to CENTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- With the switch unit with the Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- The switch strip inside the center instrument panel vent must be replaced completely if the Front Passenger Airbag -Disabled- Indicator Lamp -K145- LED is faulty. Refer to Front Passenger Airbag -Disabled- Indicator Lamp -K145-, REMOVING AND INSTALLING
CD Changer -R41-
- Removing and Installing. Refer to CD Changer -R41-, REMOVING AND INSTALLING, THROUGH 05/29/2009 .
Climatronic Control Module -J255-
- Also called "Operating and Display Unit".
- Removing and Installing. Refer to CLIMATRONIC CONTROL MODULE -J255- .
Access/Start Authorization Switch -E415-
- Removing and Installing. Refer to Access/Start Authorization Switch -E415-, REMOVING AND INSTALLING .
Bolt
- 1.4 Nm
Gap Cover
Bolt
- 1.4 Nm
Instrument Cluster
- Removing and Installing. Refer to INSTRUMENT CLUSTER, REMOVING AND INSTALLING .
