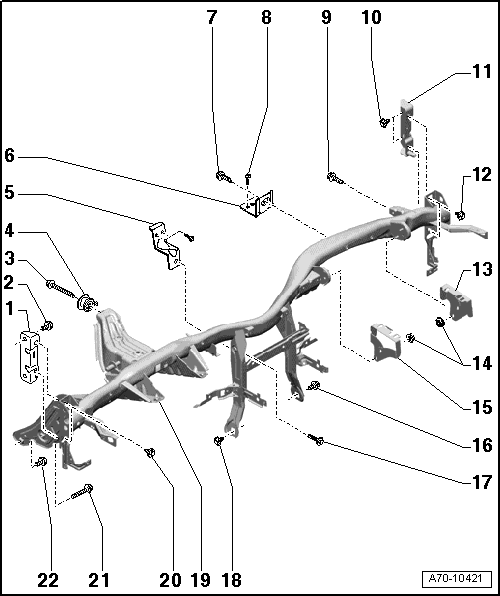

Instrument Panel Central Tube Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Central Tube Left Angle Bracket
- Before removal, mark the installation location on the A-pillar for reinstallation.
- Bolt
- 23 Nm
- Bolt
- 23 Nm
- Balancing Element
- A/C Unit Bracket
- A/C Unit Bracket
- Bolt
- 10 Nm
- Bolt
- 1.5 Nm
- Bolt
- 10 Nm
- Bolt
- 23 Nm
- Right Central Tube Angle Bracket
- Before removal, mark the installation location on the A-pillar for reinstallation.
- Bolt
- 23 Nm
- Right Front Passenger Airbag Unit Bracket
- Nut
- 7 Nm
- Left Bracket for Front Passenger Airbag Unit
- Bolt
- 23 Nm
- Bolt
- T10 Nm
- Bolt
- 23 Nm
- Instrument Panel Central Tube
- before removing, mark installation location on -item 1- and -item 11- for reinstallation.
- Removing and Installing. Refer to INSTRUMENT PANEL CENTRAL TUBE, REMOVING AND INSTALLING .
- Bolt
- 23 Nm
- Bolt
- Self-locking
- Replace if removed.
- 23 Nm
- Bolt
- 23 Nm
