Front Passenger Airbag Unit Overview

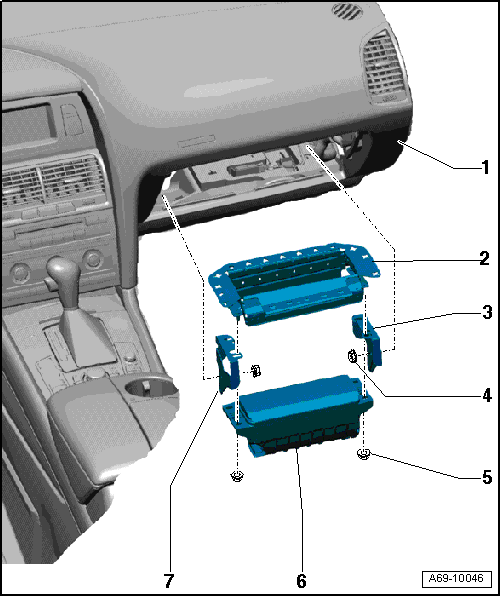

Fig 1: Passenger Airbag Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Instrument Panel
Airbag Unit Guide
- Secured on instrument panel.
- Cannot be replaced separately.
Right Airbag Unit Bracket
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT BRACKET, REMOVING AND INSTALLING .
Nut
- 7 Nm
- Replacing
Nut
- 7 Nm
- Replacing
Airbag Unit
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Follow the allocation of the airbag unit to the instrument panel.
- Locking and activating possible with key switch.
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT, REMOVING AND INSTALLING .
Left Airbag Unit Bracket
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT BRACKET, REMOVING AND INSTALLING .
