Front Center Armrest Overview

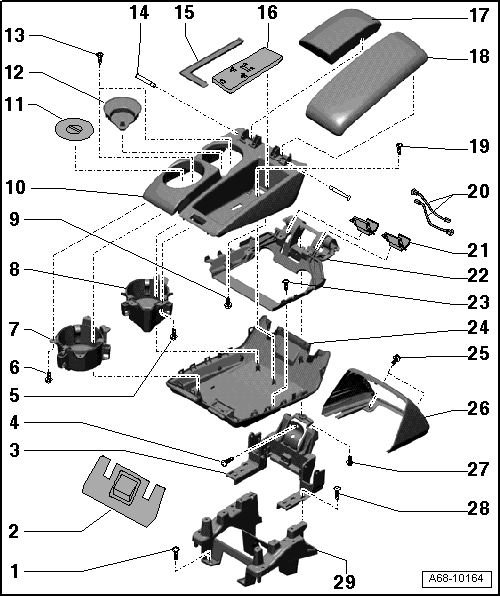

Fig 1: Identifying Front Center Armrest Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 8 Nm
Support Foot Trim
- For front center armrest.
Upper Part of Support Foot
- Removing and Installing. Refer to UPPER AND LOWER PARTS OF FRONT CENTER ARMREST SUPPORT FOOT, REMOVING AND INSTALLING .
Bolt
- 4 Nm
Bolt
- 1.2 Nm
Bolt
- 1.2 Nm
Cupholder
- Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
Cupholder
- Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
Bolt
- 0.9 Nm
Storage Compartment
- Clipped with -item 24-.
- Removing and Installing. Refer to FRONT CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Liner
- For the cupholder.
Liner
- For the cupholder.
Bolt
- 0.9 Nm
Hinge Pin
Liner
- For the storage compartment.
Cell Phone/Bluetooth Handset Mount
- Removing and Installing. Refer to CELLULAR TELEPHONE PREPARATION AND BLUETOOTH CAR PHONE, REMOVING AND INSTALLING .
Right Padding
- For front center armrest.
- Removing and Installing. Refer to FRONT CENTER ARMREST PADDING, REMOVING AND INSTALLING .
Left Padding
- For front center armrest.
- Removing and Installing. Refer to FRONT CENTER ARMREST PADDING, REMOVING AND INSTALLING .
Bolt
- 0.9 Nm
Cell Phone/Bluetooth Handset Electrical Wiring
- Removing and Installing. Refer to CELLULAR TELEPHONE PREPARATION AND BLUETOOTH CAR PHONE, REMOVING AND INSTALLING .
Cover
Support
- For front center armrest.
- Removing and Installing. Refer to FRONT CENTER ARMREST CARRIER, REMOVING AND INSTALLING .
Bolt
- 1 Nm
Lower Trim
- For front center armrest.
- Clipped with -Item 10-.
- Removing and Installing. Refer to FRONT CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Support Foot Cover
- For front center armrest.
Bolt
- 4 Nm
Bolt
- 7.5 Nm
Lower Part of Support Foot
- For front center armrest.
