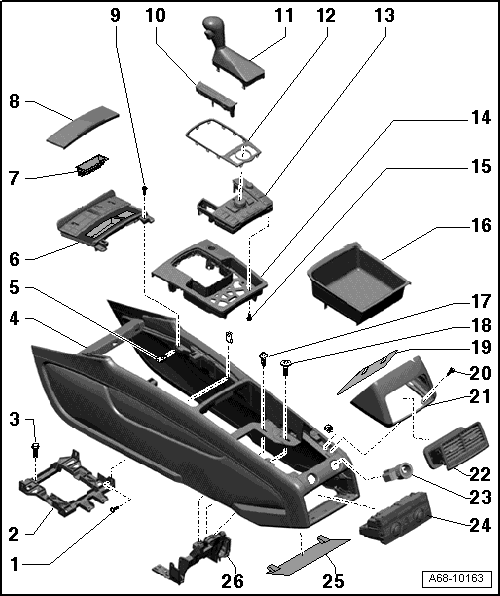

Center Console Overview
- Bolt
- 2.0 Nm
- Center Console Mounting Bracket
- Removing and Installing. Refer to CENTER CONSOLE MOUNTING BRACKET, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Spring Nut
- Front Ashtray/Front Compartment
- Removing and Installing. Refer to FRONT ASHTRAY/FRONT COMPARTMENT, REMOVING AND INSTALLING .
- Front Ashtray Insert
- Front Ashtray Trim
- Removing and Installing. Refer to FRONT ASHTRAY TRIM, REMOVING AND INSTALLING .
- Bolt
- 2.0 Nm
- Selector Lever Transmission Range Position Display Unit -Y26-
- Removing and Installing. Refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .
- Selector Lever
- Selector Lever, Removing and Installing. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING
- Decorative Frame
- Removing and Installing. Refer to Multimedia System Control Head -E380- INSTALLATION FRAME, REMOVING AND INSTALLING .
- Multimedia System Control Head -E380-
- Removing and Installing. Refer to Multimedia Control Head -E380-, REMOVING AND INSTALLING .
- Multimedia System Control Head -E380- Installation Frame
- Removing and Installing. Refer to Multimedia System Control Head -E380- INSTALLATION FRAME, REMOVING AND INSTALLING .
- Bolt
- 0.85 Nm
- Center Console Storage Compartment/Front Information Display Control Head Control Module -J523- Drawer
- Center console storage compartment, removing and installing. Refer to CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING
- Front Information Display Control Head Control Module -J523-, removing and installing. Refer to Front Information Display Control Head Control Module -J523- BASIC, REMOVING AND INSTALLING, THROUGH 05/29/2009
- Front Information Display Control Head Control Module -J523- drawer, removing and installing. Refer to Front Information Display Control Head Control Module -J523- DRAWER, REMOVING AND INSTALLING .
- Front Information Display Control Head Control Module -J523- drawer spring, removing and installing. Refer to Front Information Display Control Head Control Module -J523- DRAWER SPRING, REMOVING AND INSTALLING .
- Bolt
- 4 Nm
- Bolt
- 8 Nm
- Support Foot Trim
- For front center armrest.
- Bolt
- 2.0 Nm
- Support Foot Cover
- For front center armrest.
- Center Console Vent
- Removing and Installing. Refer to CENTER CONSOLE VENT, REMOVING AND INSTALLING .
- Cigarette Lighter/12v Socket
- Removing and Installing. Refer to Lighter and 12V Outlet .
- Rear A/C Display Control Head -E265- /storage compartment
- Cover
- Lower Part of Support Foot
- For front center armrest.
