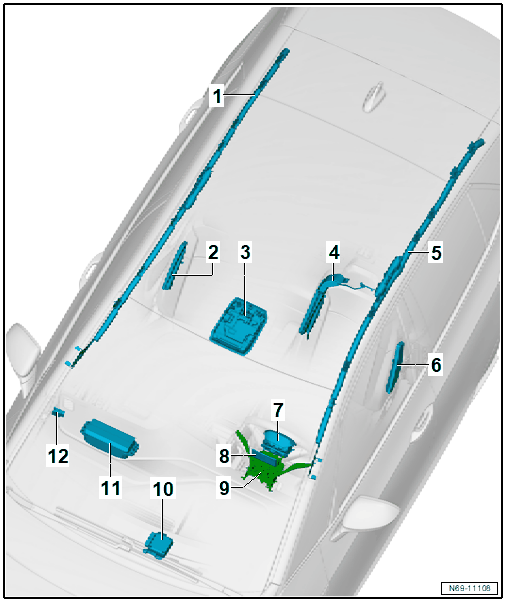

Component Location Overview - Airbag System

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Passenger Head Curtain Airbag
   • LHD: with Front Passenger Head Curtain Airbag Igniter -N252-
   • RHD: with Driver Head Curtain Airbag Igniter -N251-
   • Refer to Overview - Head Curtain Airbag  .
   • Refer to Head Curtain Airbag with Igniter, Removing and Installing  .
2. Front Passenger Front Thorax Airbag
   • LHD: with Front Passenger Thorax Airbag Igniter -N200-
   • RHD: with Driver Thorax Airbag Igniter -N199-
   • Refer to OVERVIEW - FRONT THORAX AIRBAG, OUTER SIDE
   • Refer to FRONT THORAX AIRBAG, OUTER SIDE, REMOVING AND INSTALLING
3. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Only to be replaced by Front Interior Lamp -WX1-
   • Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
4. Driver Side Front Thorax Airbag with Driver Side Front Center Airbag Igniter for Occupant Contact Protection - N737-
   • Refer to OVERVIEW - FRONT THORAX AIRBAG, INNER SIDE
   • Refer to INNER SIDE FRONT THORAX AIRBAG, REMOVING AND INSTALLING
5. Driver Head Curtain Airbag
   • LHD: with Driver Head Curtain Airbag Igniter -N251-
   • RHD: with Front Passenger Head Curtain Airbag Igniter -N252-
   • Refer to Overview - Head Curtain Airbag  .
   • Refer to Head Curtain Airbag with Igniter, Removing and Installing  .
6. Front Thorax Airbag on Driver Side
   • LHD: with Driver Thorax Airbag Igniter -N199-
   • RHD: with Front Passenger Thorax Airbag Igniter -N200-
   • Refer to OVERVIEW - FRONT THORAX AIRBAG, OUTER SIDE
   • Refer to FRONT THORAX AIRBAG, OUTER SIDE, REMOVING AND INSTALLING
7. Airbag Unit with Driver Airbag Igniter -N95-
   • Refer to OVERVIEW - DRIVER SIDE AIRBAG  .
   • Refer to Airbag Unit with Driver Airbag Igniter N95, Removing and Installing  .
8. Driver Information System Control Module with Display Unit -J1254-
   • Refer to DRIVER INFORMATION SYSTEM CONTROL MODULE WITH DISPLAY UNIT J1254, REMOVING AND INSTALLING .
9. Steering Column Electronics Control Module -J527-
   • Refer to STEERING COLUMN ELECTRONICS CONTROL MODULE J527, REMOVING AND INSTALLING .
10. Airbag Control Module -J234-
    • Refer to Overview - Airbag Control Module  .
    • Refer to Airbag Control Module J234, Removing and Installing  .
11. Front Passenger Side Airbag Unit
    • With the Front Passenger Airbag Igniter 1 -N131-
    • With Front Passenger Airbag Unit - NX3- including Front Passenger Airbag Igniter 1 - N131- and Front Passenger Airbag Igniter 2 - N132-
    • Refer to Overview - Front Passenger Airbag  .
    • Refer to Front Passenger Airbag Unit with Igniter, Removing and Installing  .
12. Front Passenger Airbag Deactivation Key Switch -E224-
    • Depending on equipment/version
    • Refer to Front Passenger Airbag Deactivation Key Switch E224, Removing and Installing  .
