Overview - Airbag Control Module

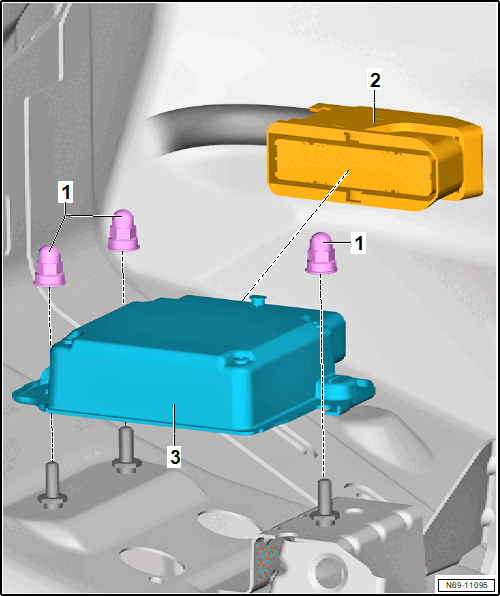

Fig 1: Exploded View Of Airbag Control Module
GWWN69-11095Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Nut
    • 9 Nm
    • Quantity: 3
  2. Connector
  3. Airbag Control Module -J234-
