Overview - Front Passenger Airbag

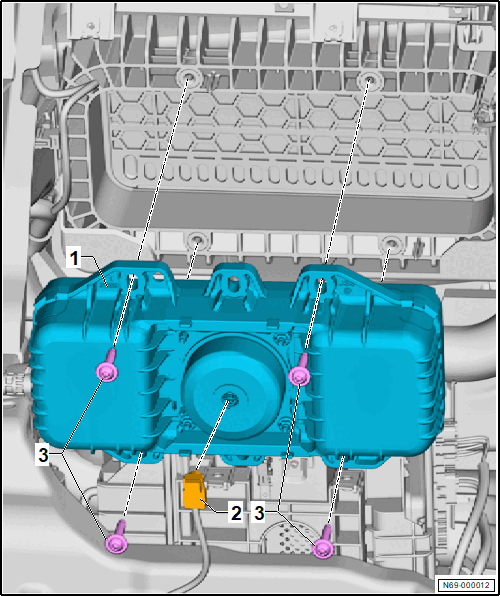

Fig 1: Exploded View Of Front Passenger Airbag

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Passenger Airbag with
- With the Front Passenger Airbag Igniter 1 -N131-
- With Front Passenger Airbag Unit - NX3- including Front Passenger Airbag Igniter 1 - N131- and Front Passenger Airbag Igniter 2 - N132-
- Refer to Front Passenger Airbag Unit with Igniter, Removing and Installing .
Connector
- Depending on equipment/version
Bolt
- Replace after removing
- Quantity: 4
- Refer to Fig 2

Front Passenger Airbag - Tightening Specification and Sequence

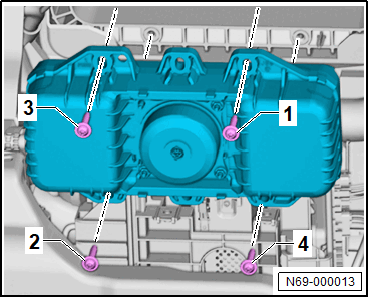

Fig 2: Front Passenger Airbag - Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Step	Bolts	Tightening Specification / Additional Turn
1.	-1-	8 Nm
2.	-2-	8 Nm
3.	-3-	8 Nm
4.	-4-	8 Nm
