Overview - Front Thorax Airbag, Inner Side

The overview is described as an example for a LHD vehicle

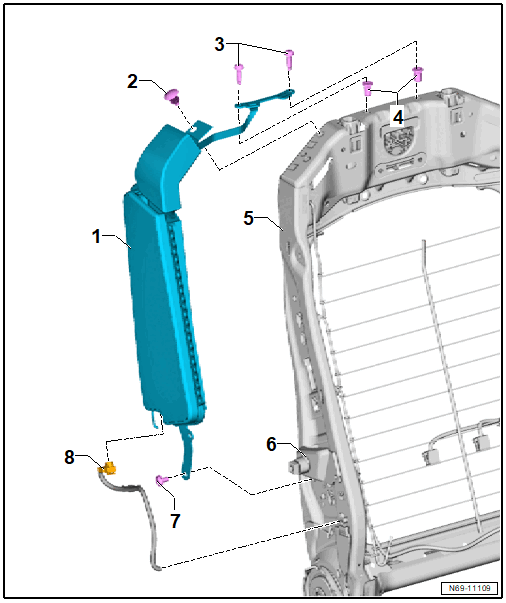

Fig 1: Exploded View Of Front Thorax Airbag, Inner Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Interaction Airbag
   • With Driver Side Front Center Airbag Igniter for Occupant Contact Protection -N737-
   • Installed on the driver side
   • Refer to Inner Side Front Thorax Airbag, Removing and Installing  .
2. Clip
   • If damaged, replace the interaction airbag.
3. Bolt
   • 8 Nm
   • Quantity: 2
4. Pop Rivet Nut
   • Quantity: 2
5. Front Seat Frame
6. Armrest Bracket
7. Bolt
   • 8 Nm
   • Replace after removing
8. Connector
