Overview - Driver Side Airbag

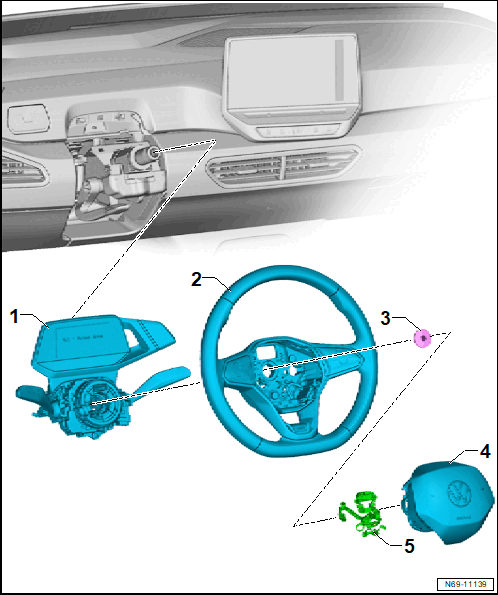

Fig 1: Exploded View Of Driver Side Airbag

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
- Refer to STEERING COLUMN ELECTRONICS CONTROL MODULE J527, REMOVING AND INSTALLING .
Steering Wheel
- Refer to STEERING WHEEL, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - STEERING WHEEL .
Airbag Unit
- With Driver Airbag Igniter -N95-
- Refer to Airbag Unit with Driver Airbag Igniter N95, Removing and Installing .
Wire
- Refer to Airbag Connector, Replacing .
