Overview - Upper Control Arm

The overview shows the left side of the vehicle as an example

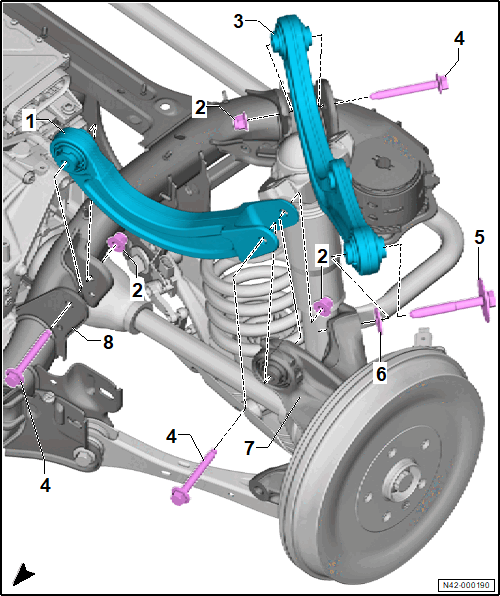

Fig 1: Exploded View Of Upper Control Arm

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Upper Control Arm
   • Refer to Upper Front Control Arm, Removing and Installing  .
2. Nut
   • M 12 x 1.5
   • Quantity: 3
   • Replace after removing
3. Rear Upper Control Arm
   • Refer to Upper Rear Control Arm, Removing and Installing  .
4. Bolt
   • M 12 x 1.5 x 90
   • Quantity: 3
   • Replace after removing
   • 70 Nm + 180°
5. Bolt
   • M 14 x 1.5 x 100
   • Replace after removing
   • 130 Nm + 180°
6. Washer
7. Wheel Bearing Housing
   • Refer to Overview - Wheel Bearing  .
   • Refer to Wheel Bearing Housing, Removing and Installing  .
8. Subframe
   • Refer to Overview - Subframe  .
   • Refer to Subframe, Securing  .
   • Refer to SUBFRAME, LIFTING WITH SCISSOR LIFT TABLE  .
   • Refer to Rear Axle, Removing and Installing  .
