Overview - Lower Control Arm

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

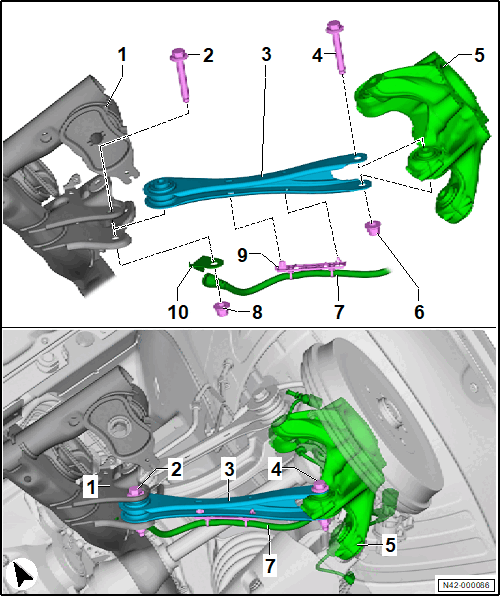

Fig 1: Exploded View Of Lower Control Arm

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Subframe
- Refer to Overview - Subframe .
- Refer to Subframe, Securing .
- Refer to SUBFRAME, LIFTING WITH SCISSOR LIFT TABLE .
- Refer to Rear Axle, Removing and Installing .
Bolt
- Replace after removing
- M 12 x 1.5 x 80
- 70 Nm +180°
Lower Control Arm
- Refer to Lower Control Arm, Removing and Installing .
Bolt
- Replace after removing
- M 12 x 1.5 x 80
- 70 Nm +180°
Wheel Bearing Housing
- Refer to Overview - Wheel Bearing .
- Refer to Wheel Bearing Housing, Removing and Installing .
Nut
- Replace after removing
- M 12 x 1.5
- 70 Nm +180°
Wire
Nut
- Replace after removing
- M 12 x 1.5
- 70 Nm +180°
Bracket
Bracket
