Component Location Overview - Seat Belts And Mounting Points

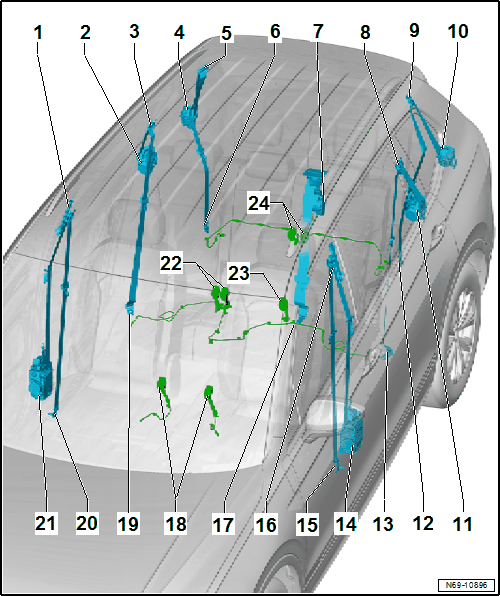

Fig 1: Seat Belts & Mounting Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Seat Belt Height Adjuster
   • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
2. Automatic Belt Retractor
   • For the second row three-point seat belt
   • with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
   • Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to OUTER SECOND ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
3. Second Row Seat Belt Guide
   • Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to OUTER SECOND ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
4. Automatic Belt Retractor
   • For the third row three-point seat belt
   • Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to THIRD ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
5. Third Row Seat Belt Relay
   • Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to THIRD ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
6. Third Row Belt End Fitting
   • Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .
7. Automatic Belt Retractor
   • For the rear three-point seat belt in the center
   • Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING .
8. Second Row Seat Belt Guide
   • Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to OUTER SECOND ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
9. Third Row Seat Belt Relay
   • Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
   • Removing and Installing. Refer to THIRD ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
10. Automatic Belt Retractor
    • For the third row three-point seat belt
    • Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to THIRD ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
11. Automatic Belt Retractor
    • For the second row three-point seat belt
    • with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
    • Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to OUTER SECOND ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
12. Third Row Belt End Fitting
    • Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .
13. Outer Second Row Belt End Fitting
    • Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to SECOND ROW REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
14. Automatic Belt Retractor
    • For the front three-point seat belt
    • With Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
15. Front Belt End Fitting
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
16. Seat Belt Height Adjuster
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
17. Second Row Center Belt End Fitting
    • Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to REAR CENTER BELT END FITTING, REMOVING AND INSTALLING .
18. Front Seat Belt Latches
    • Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
    • Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
19. Outer Second Row Belt End Fitting
    • Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to SECOND ROW REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
20. Front Belt End Fitting
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
21. Automatic Belt Retractor
    • With Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
    • Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
22. Second Row Seat Belt Latches
    • Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH .
    • Removing and Installing. Refer to CENTER REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SECOND ROW .
23. Second Row Seat Belt Latch
    • Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH .
    • Removing and Installing. Refer to CENTER REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SECOND ROW .
24. Third Row Seat Belt Latches
    • Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, THIRD ROW .
    • Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, THIRD ROW .
