Overview - Third Row Three-Point Seat Belt

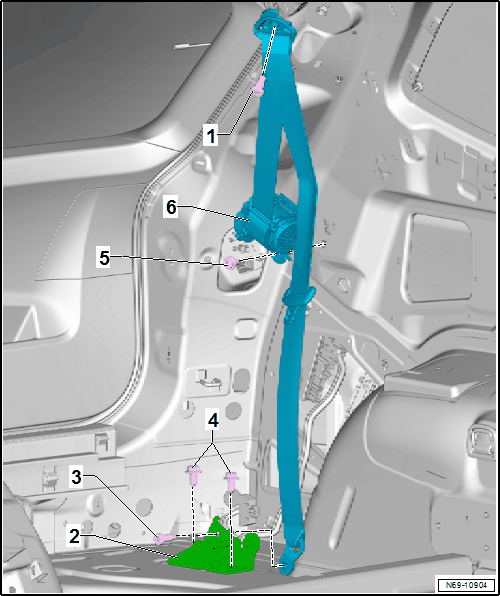

Fig 1: Third Row Three-Point Seat Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
2. Mounting Bracket
   • Allocation. Refer to the Parts Information.
3. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
   • Belt End Fitting, Removing and Installing. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .
4. Bolt
   • Quantity: 2
   • Allocation. Refer to the Parts Information.
   • 50 Nm
   • Removing and Installing. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .
5. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
6. Automatic Belt Retractor
   • Removing and Installing. Refer to THIRD ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
