Overview - Front Three-Point Seat Belt

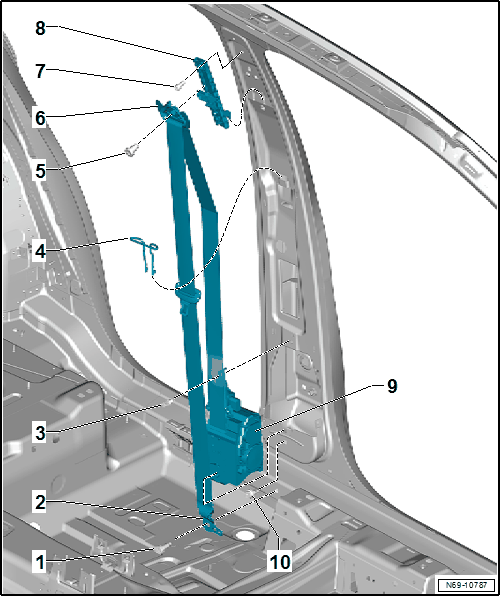

Fig 1: Front Three-Point Seat Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Belt End Fitting
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
Clip
- Only installed on vehicles with reversible seat belt tensioners
Front Seat Belt Guide
- Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- When installing, pay attention to the correct installation position
Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Seat Belt Guide
- Must swing into vertical position or carrier direction by itself after tightening the screw.
Bolt
- 20 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Seat Belt Height Adjuster
- Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Always replace if the belt tensioner has deployed when the belt is buckled
Automatic Belt Retractor
- Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
- Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- On vehicles with reversible seat belt tensioner a test plan in the Guided Fault Finding must be performed after replacing the seat belt.
Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
