Overview - Rear Center Three-Point Seat Belt

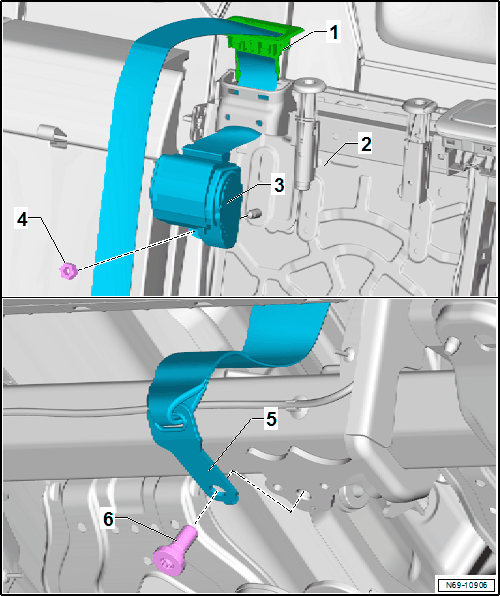

Fig 1: Rear Center Three-Point Seat Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Rear Center Seat Belt Guide
   • Replace if damaged
   • To remove, press the two side tabs inward and remove the seat belt guide
   • When installing, press on until it engages audibly.
2. Left 2/3 Rear Seat Backrest
3. Automatic Belt Retractor
   • Removing and Installing. Refer to REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING .
4. Nut
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
5. Center Rear Belt End Fitting
   • Removing and Installing. Refer to REAR CENTER BELT END FITTING, REMOVING AND INSTALLING .
6. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
