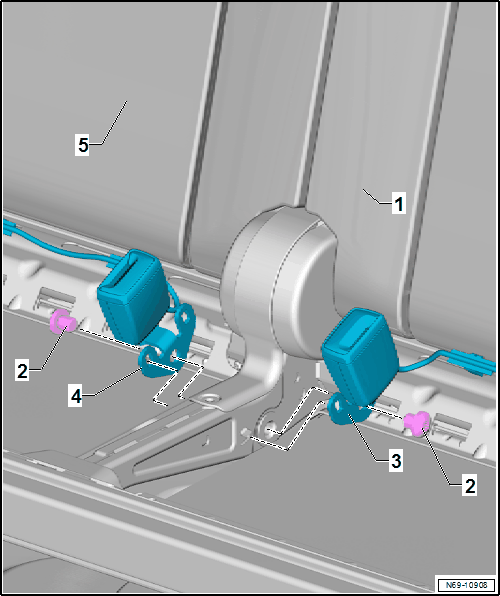

Overview - Rear Seat Belt Latch, Third Row

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Driver Side Seat
- Removing and Installing. Refer to SEAT, REMOVING AND INSTALLING .
Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Seat Belt Latch
- With Driver Side Rear Seat Belt Switch -E258-
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, THIRD ROW .
Seat Belt Latch
- With Passenger Side Rear Seat Belt Switch -E259-
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, THIRD ROW .
Front Passenger Side Seat
- Removing and Installing. Refer to SEAT, REMOVING AND INSTALLING .
