Air Duct Channel, Disassembling And Assembling
WARNING: This page is about a different variant/trim than selected.
- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Heating and A/C Unit attachments, removed. Refer to OVERVIEW - HEATING AND A/C UNIT ATTACHMENTS .

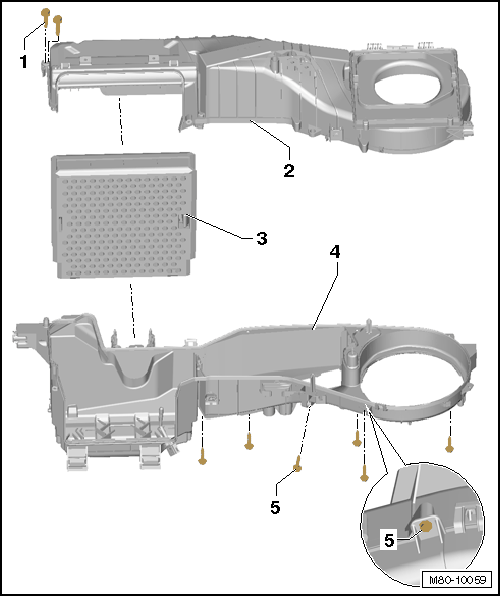

- Bolts
- 1.5 Nm
- Air duct bolts
- Upper Section of Air Duct Channel
- Noise Insulation
- In vehicles without an A/C system (with heater only), a foam core piece is installed (for noise insulation) instead of the evaporator.
- Lower Section of Air Duct Channel
- Bolts
- 1.5 Nm
- Air duct bolts
