Overview - Rear Axle

WARNING: This page is about a different variant/trim than selected.

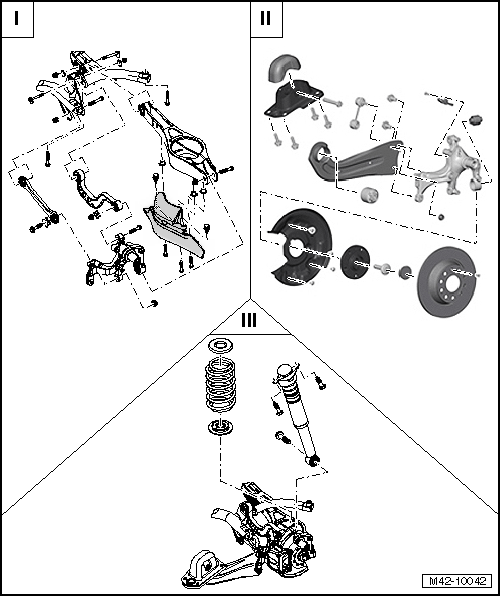

Fig 1: Identifying Multi-Link Suspension Overview
GWWM42-10042Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. I -  Refer to OVERVIEW - SUBFRAME
  2. II -  Refer to OVERVIEW - WHEEL BEARING
  3. III -  Refer to OVERVIEW - SUSPENSION STRUT, SHOCK ABSORBER, SPRING

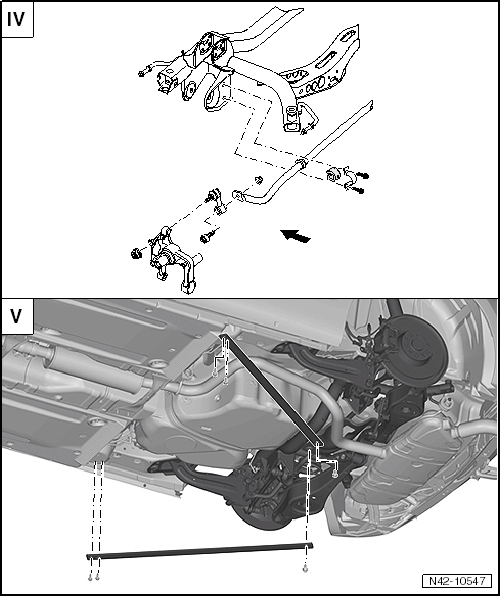

Fig 2: Identifying Multi-Link Suspension Overview
GWWN42-10547Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. IV -  Refer to OVERVIEW - STABILIZER BAR
  2. V -  Refer to OVERVIEW - TENSION STRUTS
